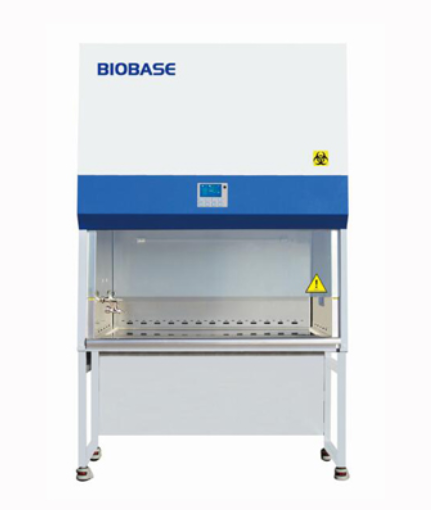

Manufacturer: BIOBASE
Model: 11236BBC86(6')
Origin: China
Warranty: 12 months
- Motorized front window.
- Large LCD display, all information displayed.
- Automatic air speed adjustable with filter block.
- With memory function in case of power-failure.
- Side & back wall is made of single piece stainless steel.
- Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
- Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
External Size(W*D*H): 1873*775*2295mm
Internal Size(W*D*H): 1700*600*660 mm
Work Surface Height: 750mm
Max Opening: 550mm (22'')
Tested Opening: Safety height 200mm (8'')
Airflow Volume: Inflow: 649m3/h(382cfm); Down flow: 60%:1212m3/h(713cfm); Exhaust: 40%:649m3/h(382cfm)
Front Window: Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter : Two, 99.999% efficiency at 0.3um, filter life indicator
Filter Guard Type: Aluminum alloy frame
Noise: NSF 49≤61 dB/EN 12469≤58 dB
Illumination: ≥1000Lux
Display: LCD Display
Waterproof Socket : 2, Total consumption:≤500W
Tap: Water tap*1, Gas tap *1
Ground Resistance: ≤ 0.10Ω
Power Supply: AC220/110V±10%, 50/60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption: 500W
Alarm: Abnormal airflow velocity; Filter replacement; Front window at unsafe height
DC Motor: One ECM motor, 110V& 220V acceptable, Speed adjustable,
high efficiency and low power consumption
Material: Working area: 304stainless steel/ Frame and Decorative Plate:
cold-rolled steel with anti-bacteria power coating
UV Lamp : 40W; Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp: 22W*2; LED lamp
Package Size (W*D*H): 2020*1080*1900mm
Gross Weight: 363kg
Standard Accessory
LED lamp 2pc
UV lamp 2pcs
Base stand 1pc
SS water & gas taps 1pc
Drain valve 1pc
Waterproof sockets 1pc
Optional Accessory
Armrest 1pc
Airflow tester 1pc
Formalin fumigation sterilizer 1pc
Infrared sterilizer 1pc
Adjustable base stand 1pc
Remote control 1pc
