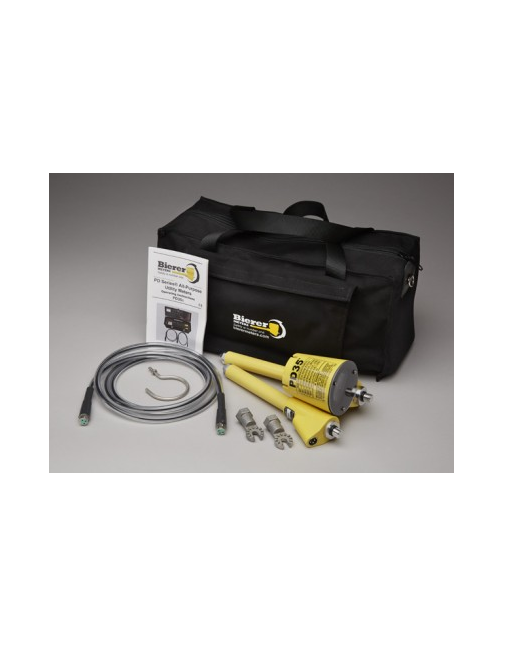

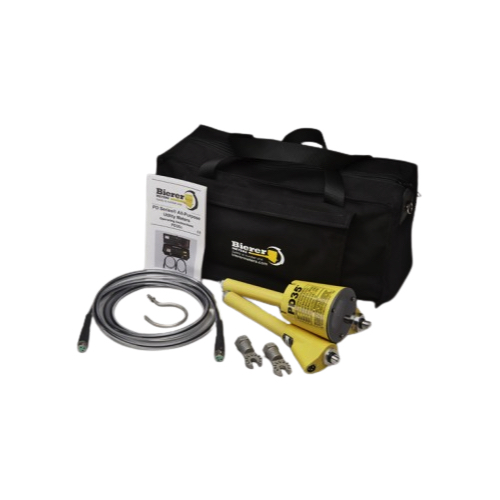

Includes:
0 – 35kV All-purpose utility meter
8 ft. regular cable
8 ft. extension cable
hook probe
straight probe
3kV power supply (PA25T18- 18V milwaukee platform, ** Battery and charger included**)
manual
case
Operating Range: 120 Volts to 35,000 Volts (Phase-to-Phase)
Measurement Type: True RMS
2kV Range: 1 Volt to 1,999 Volts (Resolution: 1 Volt)
20kV Range: 10 Volts to 19.99kV (Resolution: 10 Volts)
35kV Range: 100 Volts to 35.0kV (Resolution: 100 Volts)
Maximum Current Loading: 0.5mA at 35kV (Phase-to-Phase)
Interconnect Cable Insulation: 35kV rated
Input Circuitry: Electrically shielded, patented circuitry to reconcile charging currents and stray fields.
Selector Switch Positions: Off, 2kV, 20kV, 35kV, and T (Test)
Self-Test (T) Position: Tests basic meter functions, digital display, and internal battery.
Low Battery Indication: Replace battery if "T" position displays less than 8.0 Volts (080).
Over-Voltage Indication: Displays a single "1" in the far left corner of the LCD.
Auto-Off: Activates after approximately 10 minutes of inactivity.
