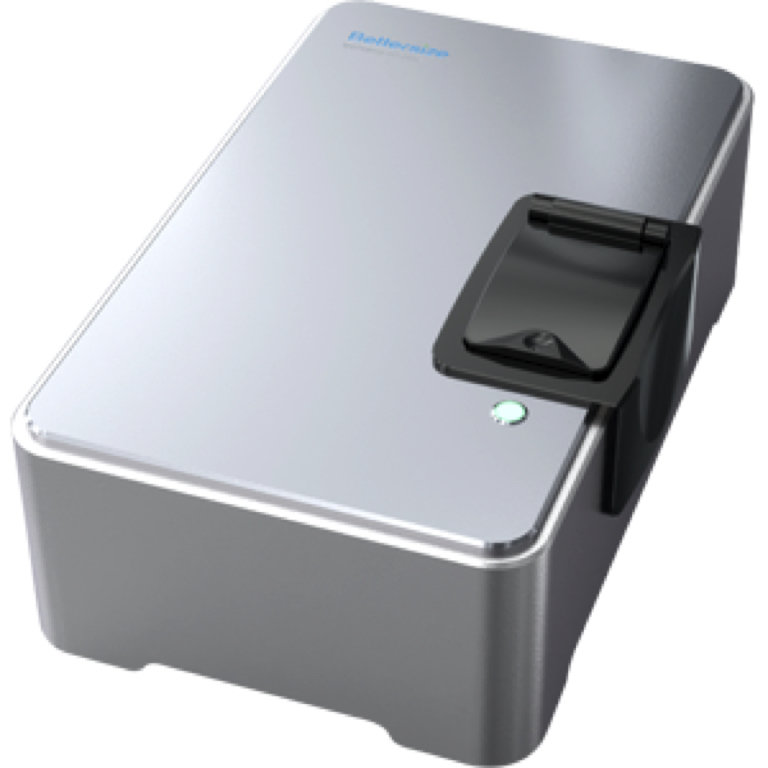

Bettersize BeNano Zeta Nanoparticle Size and Zeta Potential Analyzer (12°)

Size measurement

Size measurement range: N/A

Sample volume: N/A

Detection angle: N/A

Analysis algorithm: N/A

Upper limit of concentration range: N/A

Detection position: N/A

Zeta potential measurement

Detection angle: 12°

Zeta potential measurement range: No actual limitation

Electrophoretic mobility: > ±20 μm·cm/V·s

Conductivity: 0 - 260 mS/cm

Sample volume: 0.75 - 1 mL

Sample size: 2 nm - 110 μm

Other measurement

Molecular weight (Mw): N/A

Viscosity: N/A

Interaction parameter :N/A

Trend measurement: Time and temperature

System parameter

Temperature control range: -10℃ - 110℃ , ±0.1℃

Condensation control: Dry air or nitrogen

Laser source: 50 mW Solid-state laser, 671 nm, class 1

Correlator: Up to 4000 channels, 1011 linear dynamic range

Detector Avalanche photodiode (APD)

Intensity control: 0.0001% - 100%, manual or automatic

Dimensions (L x W x H): 62.5 x 40 x 24.5 cm (22 kg)

Power supply: AC 100-240 V, 50-60 Hz, 4A

Compliance :21 CFR Part 11, ISO 13321, ISO 22412-2017,

ISO 13099-1, ISO 13099-2

Accessory

Disposable micro-volume cuvette: N/A

Glass micro-volume cuvette: N/A

Glass cuvette (round lid): N/A

Capillary sizing cell: N/A

Dip cell: 0.8 mL, compatible with organic solvents
