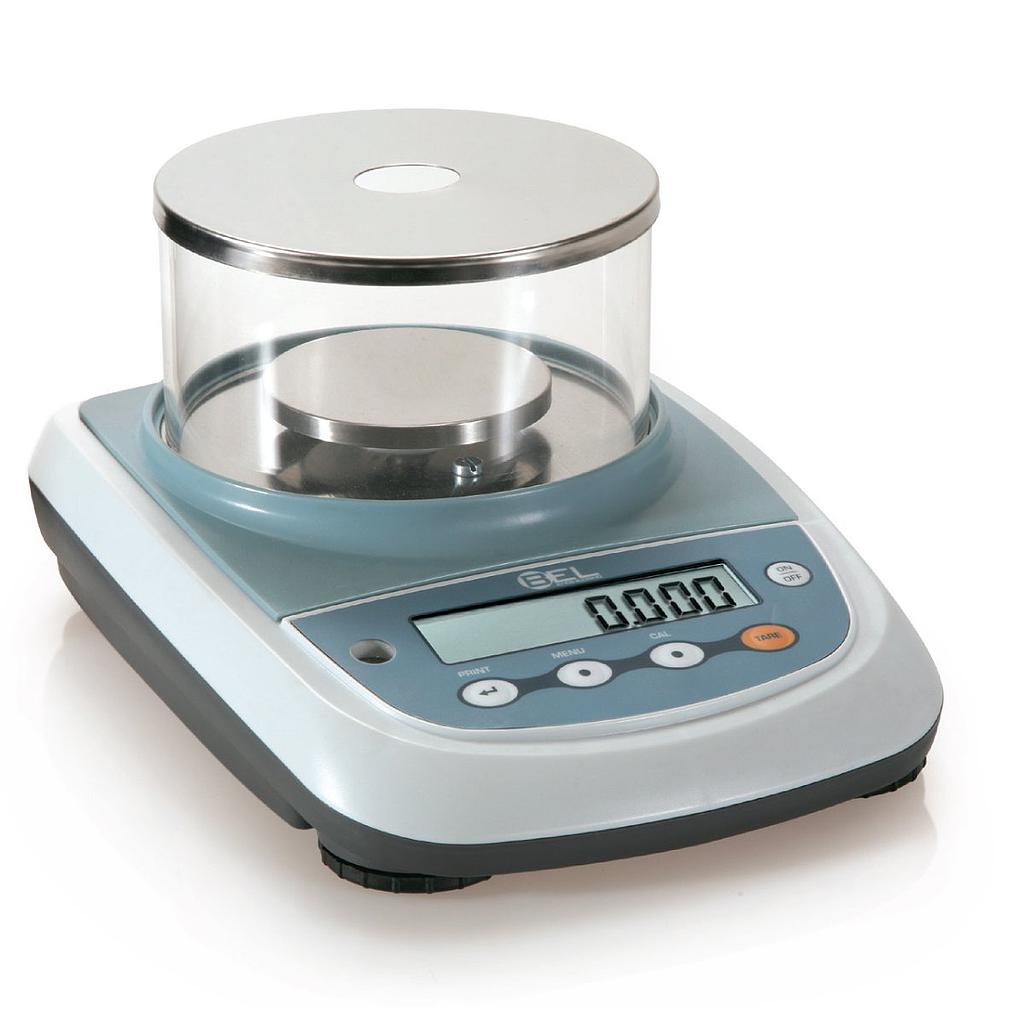

BEL Engineering S622 Precision Balance (620g; 0.01g)

Capacity [Max]: 620g

Resolution [d]: 0.01g

Calibration: External

Pan Size: Ø 130mm

Repeatability: 0.01g

Linearity: ±0.02g

Response Time (sec.): ≤2

Verification: N/A

Minimum Load: 500mg

Display: LCD

Tare Range (Subtractive): 620g

Span Drift In +10…+30°C: ±6ppm/°C

Interface: RS232

Database Capacity: -

Windshield Type And Dimensions: -

Working Temperature: 5 - 35°C

Power Supply: 110 - 230VAC, 50/60Hz, output 9VDC, 1.2A, 10VA

Power Consumption (Max): 1W

Calibrates With (Class): 200g (F1)

Balance Dimensions (W x L x H): 190 x 255 x 80mm

Net Weight / Gross Weight, Approx.: 1.4 / 2.6kg

Manual
