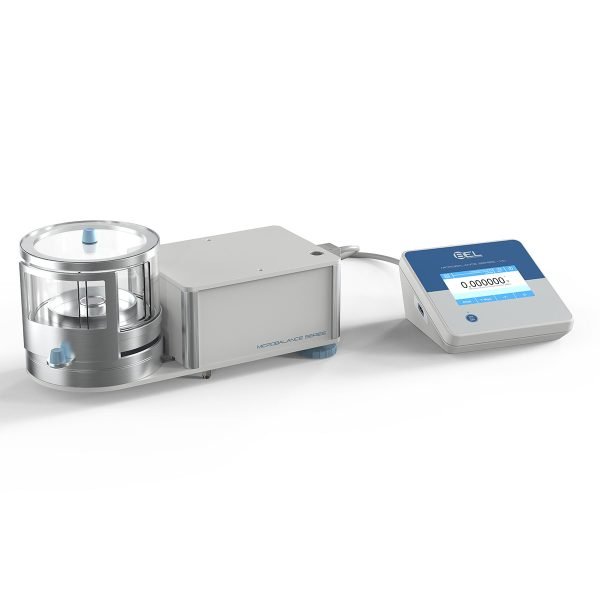

BEL Engineering Mu 26i Micro Balance (2.1 g; 0.001 mg)

Capacity [Max]: 2.1 g

Resolution [d]: 0.001 mg

Tare Range: -2.1 g

Repeatability*: 0.002 mg (1 g weight), 0.003 mg (2 g weight)

Repeatability* Typical: 0.001 mg (1 g weight), 0.002 mg (2 g weight)

Minimum Weight (USP): 10 mg

Minimum Weight, Typical (USP): 8 mg

Linearity Deviation, Typical: ± 0.01 mg

Eccentric Deviation, Typical (Test Load): 0.01 mg (2 g)

Response Time (sec.): ≤ 8

Calibration: Automatic internal

Typical Sensitivity Offset: ± 2 ppm/°C

Display: 5" Touch screen

Operating Languages: Italian, English, Portuguese, German, French, Spanish, Chinese, Russian

Interface: RS232, USB (import/export data)

Pan Size: 30 mm

Operating Environment: +15 °C – +30 °C, 45–65% Relative Humidity (non-condensing)

Operating Temp. Variation Rate: ± 0.5 °C/h

Relative Humidity Variation Rate: ± 2%/h

Verification: N/A

Power Supply (Balance): 110–230 Vac, 50/60 Hz; output 24 V 1 A multi plug

Power Supply (Ioniser): 110–230 Vac, 50/60 Hz; output 12 V 1 A multi plug

Standard Accessories: Bench Ioniser, E2 weight, tweezer

Balance Dimensions (W × L × H): 165 × 480 × 205 mm

Indicator Dimension: 173 (D) × 180 (W) × 92 (H) mm

Distance Pan / Top Wind Shield: 75 mm

Wind Shield Internal Diameter: 165 mm

*Repeatability is expressed as a standard deviation from 10 weighing cycles. Stabilization time depends on external environment conditions.
