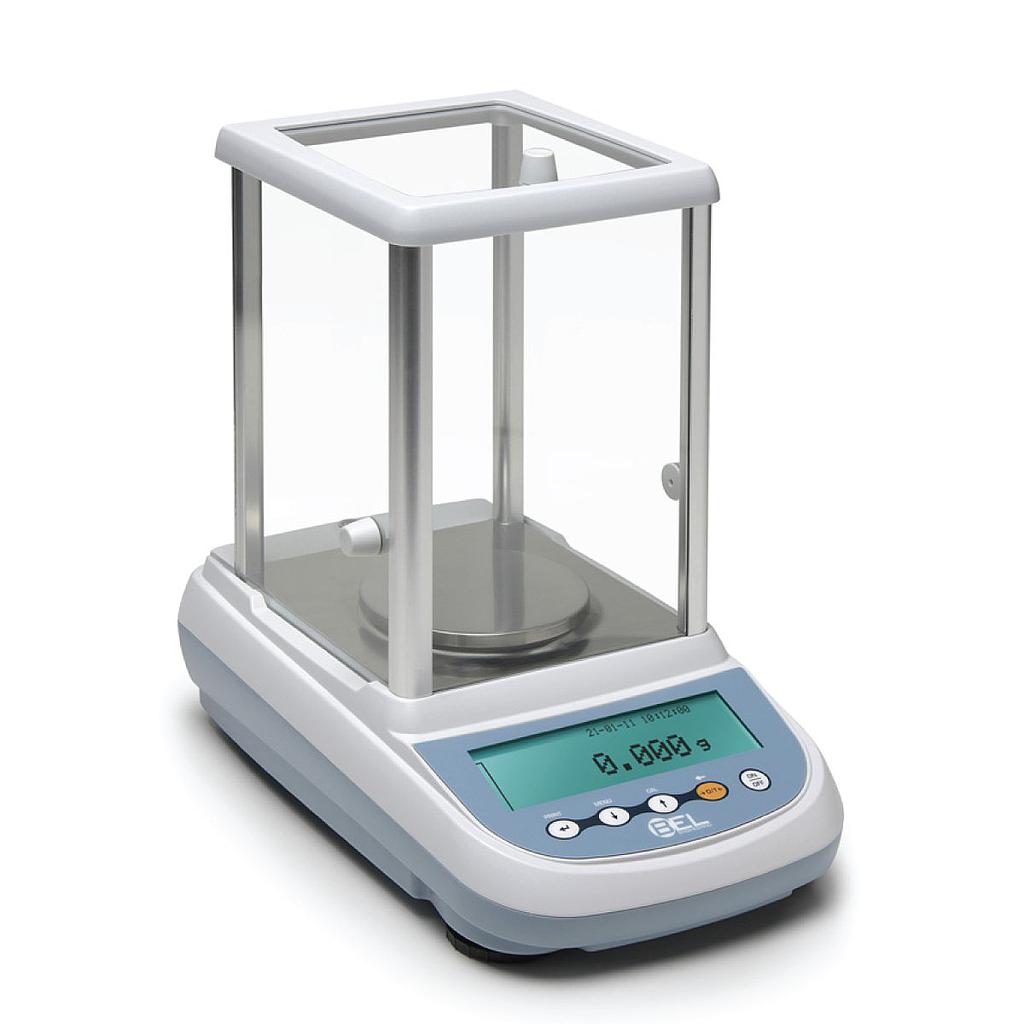

BEL Engineering LGW163i Precision Balance (160g; 0.001g)

Capacity [Max]: 160 g

Resolution [d]: 0.001 g

Calibration: Automatic internal

Pan size: Ø 110 mm

Response time (sec.): ≤3 s

Repeatability: 0.6 mg

Linearity: ±0.003 g

Verification: N/A

Minimum Load: 20 mg

Display: GRAPHIC

Tare Range (Subtractive): 160 g

Span Drift In +10…+30°C: ±3 ppm/°C

Interface: RS232

Database Capacity: 99

Windshield Type And Dimensions: 3 sliding windows / 162 x 171 x 225 mm

Working Temperature: 5–35°C

Power Supply: 110–230 Vac, 50/60 Hz, output 9 V 1.2 A 10 VA

Power Consumption (Max): 1 W

Calibrates With (Class): 100 g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 345 mm

Net Weight / Gross Weight, Approx.: 4.6 / 6.1
