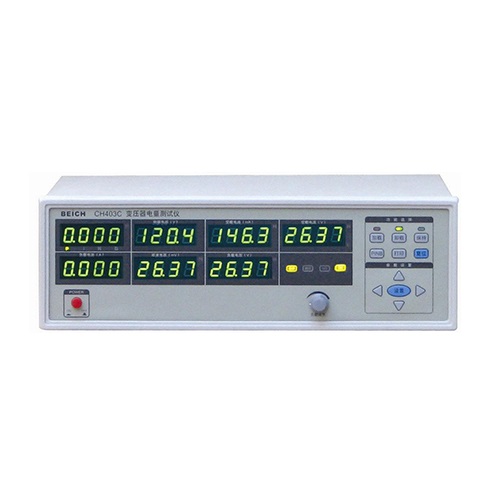

Beich CH403 Transformer Power Tester (300V; 5A; 0.5%)

Measurement parameters:

- Primary voltage, idling current, idling/load voltage, load current, ripple voltage, idling power/load primary current/efficiency/power factor

Range:

Primary voltage 300V, idling current 2A/0.2A, idling load voltage 60V, load current 5A, ripple voltage 5000mv

Basic accuracy: 0.5%

Display mode: 7-window LED

Main functions: Parameter setup, high & low limits alarm, secondary voltage/current A/D, idling load autotell

Built-in electric overload: No

Interface: PRINTER,RS232C (option)

Dimensions: 350mm×110mm×340mm (W×H×D)

Power requirement: 198-242VAC 47.5-52.5Hz

Working temperature & humidity: 0℃~40℃, ≤90%RH

Power consumption: ≤30VA

Weight: Approx.4.5kg
