Technical data
Power supply: 200 – 253 V, 50/60 Hz
Option: 100 – 130 V, 50/60 Hz with external autotransformer
Max. power consumption: 2300 VA (in short-circuit)
Output current AC: 32 Arms at AC 60 V/ 8.5 Arms at AC 230 V
Output current DC:
2.0 A at DC 800 V
0.6 A at DC 2.6 kV
0.24 A at DC 6.4 kV
0.16 A at DC 10 kV
Load capacity: Max. 10 µF
Output voltage DC: Max. 10 kV
Internal discharging resistance: 100 kOhm
Ambient temperature (operational):-20 °C to +55 °C
Storage temperature: -30 °C to +70 °C
Dimensions (W x H x D): 502 x 255 x 390 mm
Weight Approx.: 41 kg
Standard delivery includes

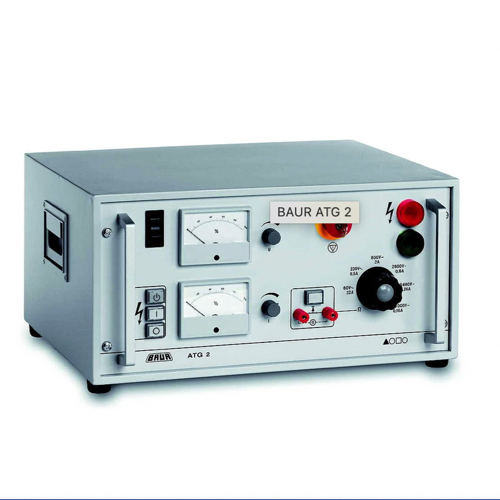

▪ BAUR burn down transformer ATG 2, including:
– HV connection cable, 3 m, fix mounted
– Mains supply cord, 2.5 m
– Earth cable, 3 m, with earthing clamp
– User manual
