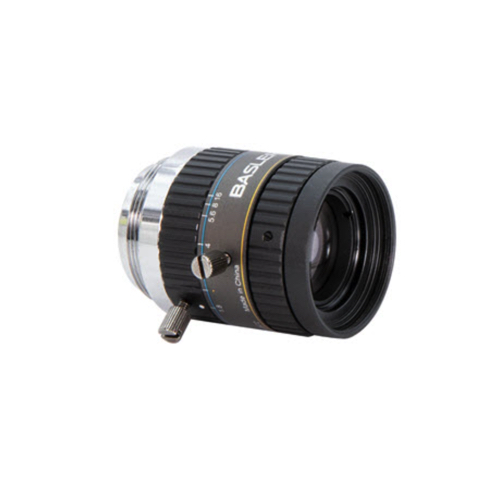

Focal Length f: 35.09 mm ± 5 %
Aperture Range: F2.0–F16
Aperture with Highest Resolution: F2.4
Image Circle: 11 mm (2/3")
Focus Range: 0.2 m to infinity
Optimum Working Distance: 0.3 m
Relative Illumination at Full Aperture: 73 %
Resolution: Designed for 147 LP/mm
MTF Measured in the Center at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.65 / 0.54
MTF Measured in the Corner at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.4 / 0.23
Optical Distortion: Typical 0.14 %
Angle of View, 1/1.8 Format: Horizontal: 11.7° Vertical: 8.7°
Angle of View, 2/3 Format: Horizontal: 14.3° Vertical: 10.8°
Wavelength Range: Visible (400–700 nm)
Back Focal Length, sF: 17.65 mm
Flange Back: 17.526 mm
Mount: C-mount
Weight: Approx. 71.0 g
Focus/Iris Operation: Manual
