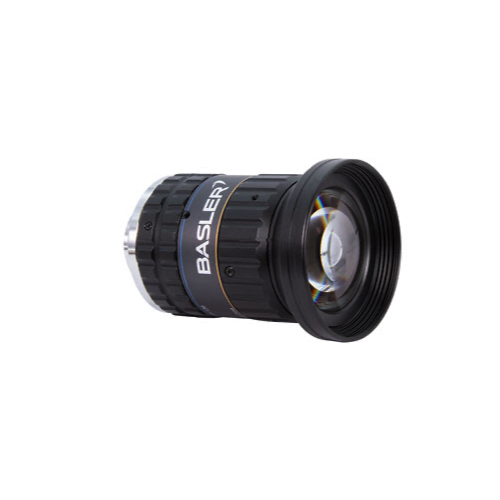

Focal Length f: 12.39 mm ± 5 %
Aperture Range: F2.0–F16
Aperture with Highest Resolution: F2.3
Image Circle: 17.6 mm (1.1”)
Focus Range: 0.1 m to infinity
Optimum Working Distance: 0.4 m
Relative Illumination at Full Aperture: 58 %
Resolution: Designed for 140 LP/mm
MTF Measured in the Center at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.56 / 0.4
MTF Measured in the Corner at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.42 / 0.3
Optical Distortion: Typical -3.10 %
Angle of View, 1/1.8 Format: Horizontal: 56.1° Vertical: 43.6°
Angle of View, 2/3 Format: Horizontal: 61.2° Vertical: 46.9°
Wavelength Range: Visible (400–700 nm)
Back Focal Length, sF: 10.15 mm
Flange Back: 17.526 mm
Mount: C-mount
Weight: Approx. 211.2 g
Focus/Iris Operation: Manual
