Balances without int. calib
Capacity (Max): 160g
Reading unit (d): 0.1mg
Verification unit (e): 1mg
Tare range: -160g
Accuracy class: I
Repeatibility: 0.1mg
Linearity: ±0.2mg
Sensitivity drift: 2ppm/°C in range +15 ÷ +35°C
Working temperature: +15 ÷ +35°C
Weighing time: <3s
Units: mg, g, ct, lb, oz, ozt, gr, dwt
Display: backlighted LCD, digits height 14mm
Interfaces: RS232, USB_B, PS2; options: LAN or Wi-fi
Pan size: 90mm
Dimensions (with legs): 185x290x305mm
Draft shield dimensions: 150x160x200mm
Power supply: ~230V 50Hz 6VA / =12V 1.2A
Balance weight: 4.2kg
Recommended std. of: E2 100g

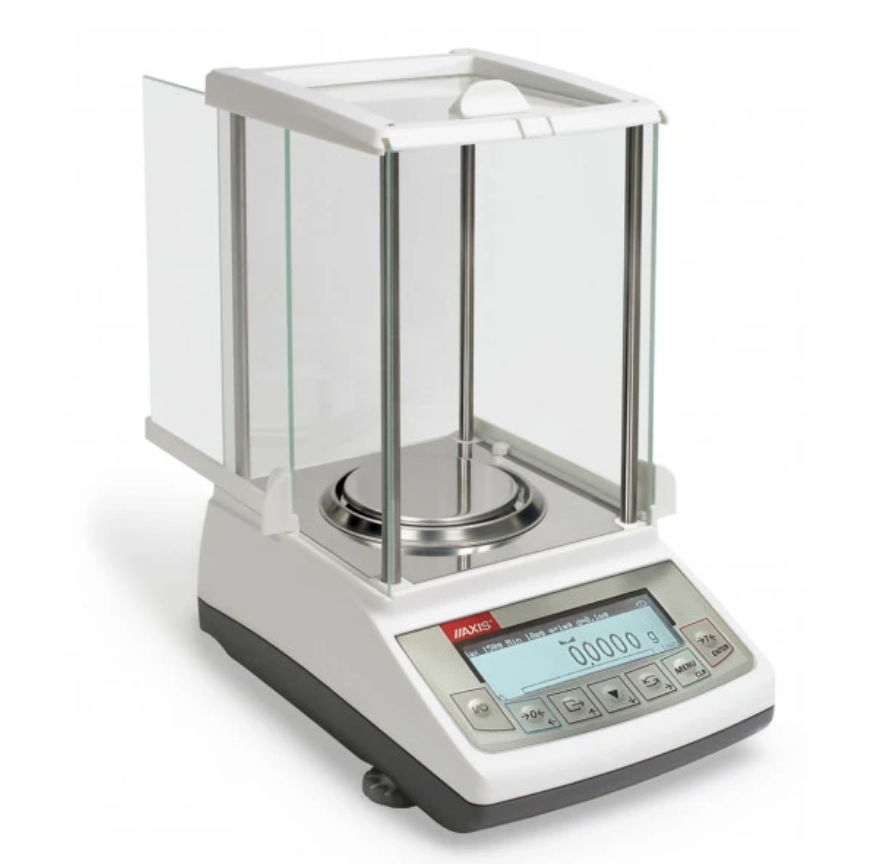

Compact plus analytical balances are designed to weight with very high precision. Thank to small dimensions the balances are convenient to use. ATE160G can only be calibrated with external standard of mass. Closed with slidable glass on three sides weighing chamber allows for comfortable and efficient operation in rooms, where elimination of air movements is impossible. Illuminated graphical display and standard set of balance keys assure efficient communication with balance functions. Menu is available in many language versions including english. The balance is equipped with products and users database (setting user priveleges possible). RS232C and USB interface (in standard) enables to connect computer or printer in order to print receipts and reports or weighing results statistical processing. Additional PS/2 interface allows to connect computer keyboard.
