- Type Pressure: Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT)
- Application Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary

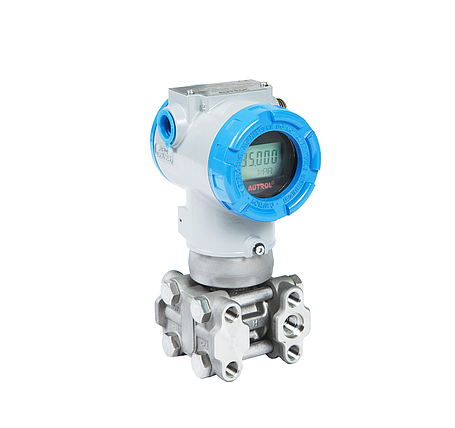

Type: Differential Pressure
Sensor Range: 0 to Max 6,895 kPa
Accuracy: ± 0.25%
Calibrated Span: 0.075 to Max 6,895 kPa
Max. Working Pressure: 13.79 MPa / 2,000 psi
Advantage: Radiation Resistance(Mild Zone) with Test Report, Differential, Flow & Level measurement
Application: Hydro & Nuclear Power Station
Protocol: 4 to 20mA, HART 5, Loop Powered
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 120℃ ( -104 to 248℉ )
Range Abilitiy: 100:1
Stability: ±0.125% URL for 36 months
3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
Certificate: KEPIC-EN, NEMA 4X
Clasification: Class 1E Seismic Category Ⅰ/ Ⅱ/ Ⅲ
Applicable code: IEEE, ASME, ASTM, R.G 1.280 rev 1
