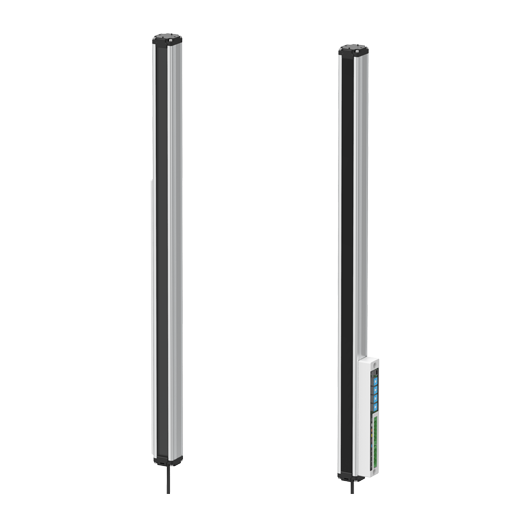

Sensing method: Through-beam
Beam pattern: Double scan type
Light source: Infrared LED (850 nm modulated light)
Sensing distance: Glass + 30 %
Sensing target: Transparent or opaque glass plate
CH ordering orientation: Forward (bottom = 1 CH) / Backward (top = 1 CH)
Sensing CH: 4 to 62 CH
Optical axis pitch: 25 to 200 mm
Response time: ≤ 120 ms
Operation mode: Light ON / Dark ON
Function: Installation guide mode, sensing level setting, optical axis misalignment alarm (low light intensity alarm), emitter damage alarm, self-diagnosis
Interference protection: Interference protection by transmission frequency selection
Synchronization type: Timing method by synchronous line
Indicator: Output indicator (red), stability indicator (green), status indicator (green, yellow, red)
Weight (packaged):
CC-Link: ≈3.2 kg (≈ 5.3 kg) (based on BWM82-24CLD-T, BWM28-50ECD-T)
EtherCAT: ≈3.42 kg (≈ 5.52 kg) (based on BWM28-50ECD-T
