Family: HD-V
Gender: Pin (Male)
Drawing: https://www.mouser.com/catalog/specsheets/1.0 male.pdf
Material: Copper
Application: 1.0 Pin/Socket
REACH - SVHC: Details
Contact Gender: Pin (Male)
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 20 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Nickel
Contact Material: Copper Alloy
Wire Gauge Range: 22 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP 67
Mating Part Number: 13711546

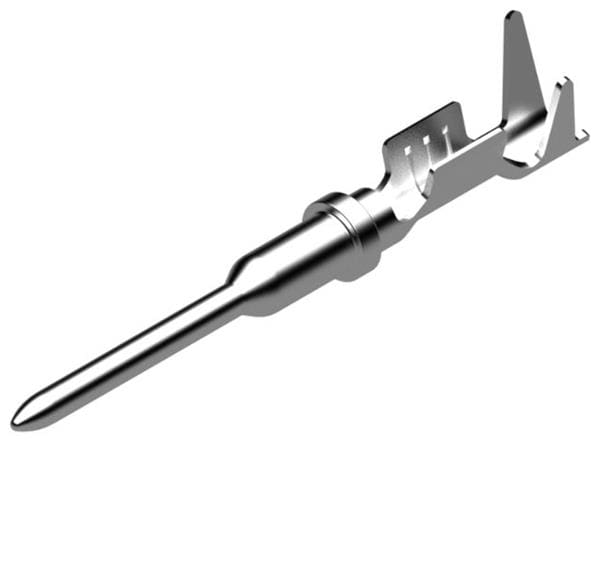

Description/Function: Male, Terminal, HES, Size 20, Sealed
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 50 C
