MP1825B 4Tap Emphasis Operation Manual
Must-read documents:
Description
The MP1825B 4Tap Emphasis is a 4-tap pre-emphasis converter for bit rates up to 32.1 Gbit/s; it supports easy changes to the pre-emphasis waveform amplitude, offset, amplitude of each tap, etc., for effective evaluation of the characteristics of high-speed interfaces.

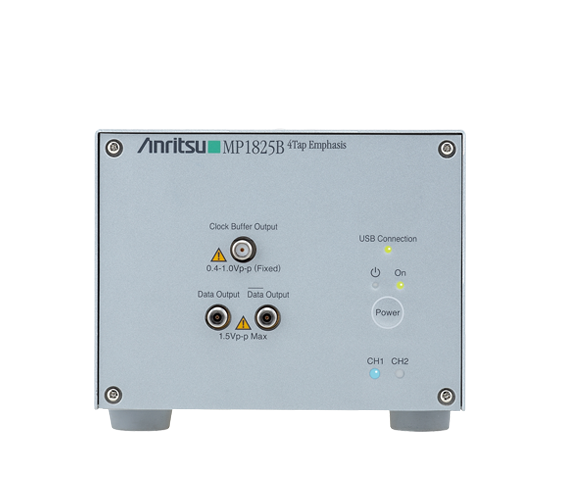

■ MP1825B 4 Tap Emphasis
| Bit Rate | 1Gbit/s to 14.05Gbit/s [MP1825B-001] 1 Gbit/s to 14.1 Gbit/s [MP1825B-001, 005] 1 Gbit/s to 28.1 Gbit/s [MP1825B-002, when not using Doubler Input/Output] 8 Gbit/s to 28.1 Gbit/s [MP1825B-002, when using Doubler Input/Output] 1 Gbit/s to 32.1 Gbit/s [MP1825B-002, 006, when not using Doubler Input/Output] |
| Data Output | Number of Output： 2 （Data/xData） |
| Emphasis Setting | a） 2post-cursor, 1pre-cursor b） 3post-cursor c） 1post-cursor, 1pre-cursor d） 2post-cursor e） 1post-cursor f） Rev. 3post-cursor |
| Peak Voltage | 100 mVp-p to 1.5 Vp-p （Single-ended） |
| Eye Amplitude | 100 mVp-p to 1.0 Vp-p （Single-ended）, Steps： 2 mVp-p |
| Offset | -1.0 Vth to +1.0 Vth, Steps： 1 mV |
| Variable Data Delay | Available. [MP1825B-003 or MP1825B-004] |
| Dimensions | 120（W）× 90.9（H）× 140（D）mm |
