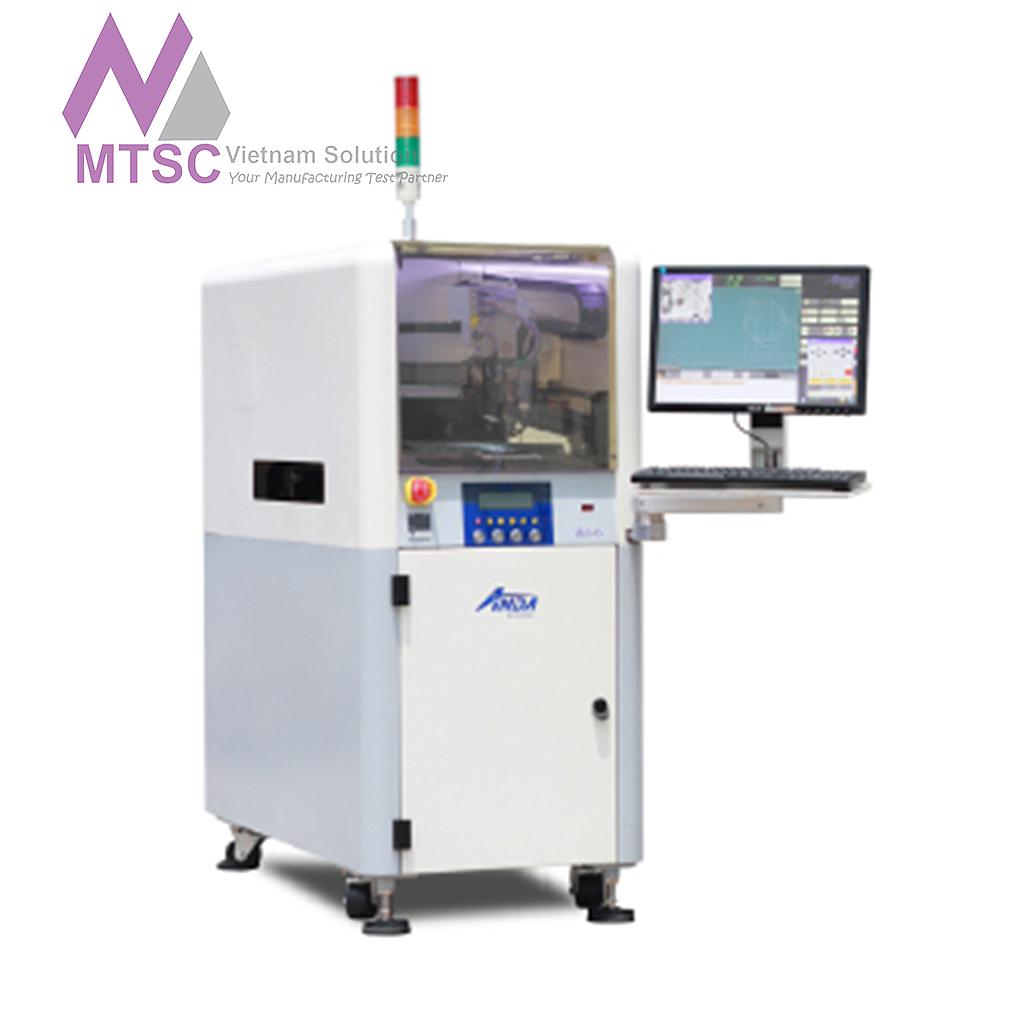

Anda iJet SD-600 Dispenser
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Underfill, FPC, Glob Top, Dam & Fill, Surface Mount Adhesive, LED Packaging, BGA Edge Bonding, etc.
iJet-6 Dispensing Fluid System Specifications
Dimensions LxWxH (mm): 690 x 1260 x 1780 (mm)
Control Method: Industrial Computer + Motion Controller
CCD Vision Camera: Automatic Calibration & Offset Correction
Motion/Drive System: Servo Motor, Ball Screw, Linear Slides
Max Speed: 800mm/second
Maximum Acceleration: 0.8G
Positioning Accuracy: ±0.02mm@3σ
Positioning Repeatability: ±0.01mm@3σ
Dispensing Range: X=350mm Y=430mm Z=30mm
Number of Dispensing Valves: 1 with optional second Valve
Valve Heating (Viscosity Control): ~100°C ± 3°C
Conveyor Width: 30 – 500mm
Conveyor Transfer Speed: 20m/min
Valve Cleaning System: Vacuum
Programming Mode: Offline or Inline Visual Programming
Incoming Voltage:
- 220-240VAC Single Phase, 50/60Hz (3 wire);
- 220-240VAC Single Phase, 50/60Hz (3 wire);
- 208VAC Split Phase, 60Hz (4 wire);
- 208VAC Three Phase, WYE, 60Hz (5 wire)
Air Pressure: 6kg/m²
Power Consumption: 2.4kW
Weight: 450kg
Standards Compliance: CE (European health & safety )
Options
Valves: PS-8500, E-01, JET-16, TDS-10, TDS-25, TDS-40, LG-02
PCB Heater: Zone Heater, Ambient ~ 120°C ± 3°C
Laser Height Measurement: Automatic Laser Height Detection & Z Axis height Calibration
Weight Measurement System: Weight Measurement Accuracy 0.01mg
