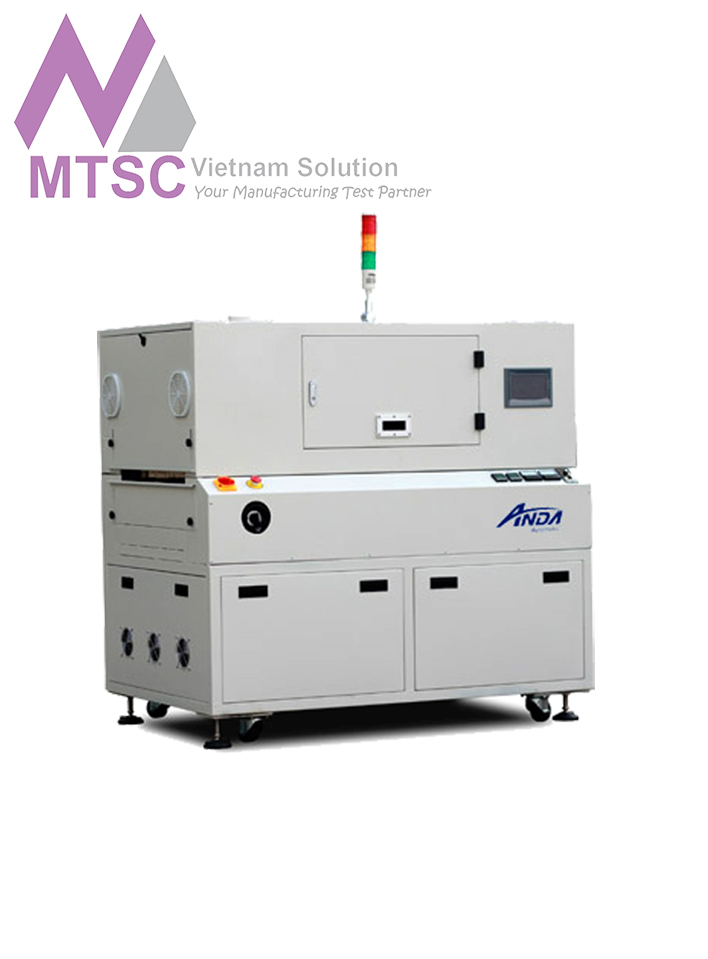

iCure-2UV is a compact, inline UV curing system. The UV curing oven is suitable for high intensity, rapid curing of UV curable coatings, adhesives, and inks.
Dimensions LxWxH (mm): 1550 x 1000 x 1470mm
Control System: PLC+Touch Screen
Working Height: 900±20mm
Transfer Mode: pin-chain edge conveyor
Width Adjust Range: 50~450mm
Transfer Speed: 1-3m/min
Transfer Direction: L-R or R-L
Conveyor Motor: 120W (with gear reduction)
Power Supply: 3 Phase Wye 208VAC, 380VAC, 415VAC, 480VAC 50/60Hz
UV Lamp Power: 6kW
UVA Intensity: >500mW/cm2
UVB Intensity: >500mW/cm2
UVC Intensity: >100mW/cm2
Range: 400 x 400mm
Power Rating: 7kW
