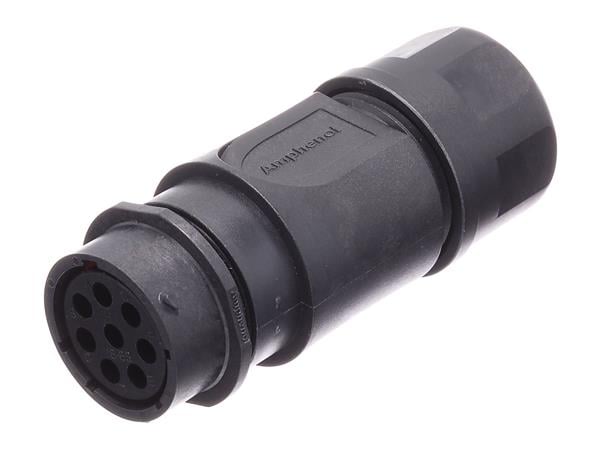

Amphenol SINE Systems RTS1BS18N8S03 Connectors Inline Receptacle 8 POS SZ 18 Socket

Length: 89 mm

Diameter: 34.8 mm

IP Rating: IP67, IP69k

Shell Size: 18

Wire Gauge: 14 AWG to 12 AWG

Shell Style: Receptacle

Unit Weight: 70.362 g

Mating Style: Bayonet

Accessory Type: Inline Receptacle w Backshell

Cable Diameter: 10 mm to 16 mm / 12 mm to 18 mm

Contact Gender: Socket (Female)

Current Rating: 23 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 500 V

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 18-8

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position
