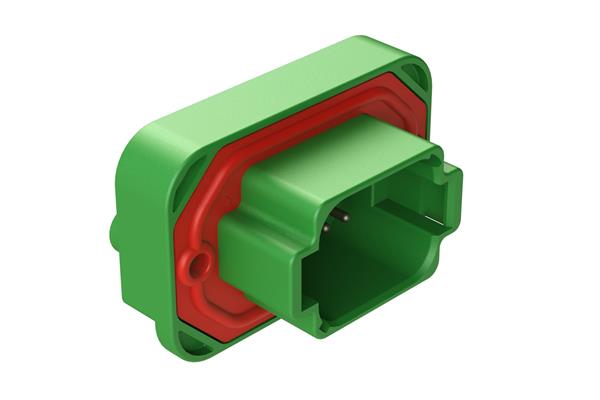

Color: Green
Pitch: 9.1 mm (0.358 in)
Width: 35.3 mm
Gender: Receptacle (RP - Male)
Height: 30 mm
Length: 55.1 mm
Insulation: Insulated
Row Spacing: 5.5 mm
Contact Type: Pin
Mating Gender: Plug
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Solder Pin
Ingress Protection: IP67
Mating Part Number: AT06-08SC
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
