Color: Blue
Pitch: 5 mm (0.197 in)
Width: 43.7 mm
Gender: Receptacle (Female)
Height: 37.9 mm
Length: 69.2 mm
Material: Polybutylene Terephthalate (PBT)
Dimensions: 69.2 mm x 37.9 mm x 43.7 mm
Application: Signal
Row Spacing: 2.54 mm
Unit Weight: 47.380 g
Contact Type: Socket
Contact Gender: Without Socket Contacts
Current Rating: 14 A
Mounting Angle: Right Angle
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 3 Row
Voltage Rating: 28 VDC
Wire Gauge Max: 13 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Lock Mate Feature: On the terminal
Termination Style: Crimp
Ingress Protection: IP6K9K
Flammability Rating: UL 94 V-HB
Number of Positions: 21 Position

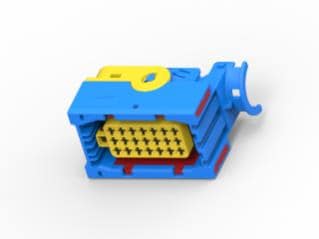

Description/Function: LEVYSEAL, Housing for Female Terminals
Maximum Operating Temperature: + 120 C
Minimum Operating Temperature: - 40 C
