Pitch: 4 mm (0.157 in)
Width: 25.7 mm
Gender: Receptacle (Female)
Height: 31.25 mm
Length: 67.2 mm
Application: Wire to Wire
Unit Weight: 32.807 g
Contact Type: Socket
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 42 VDC
Wire Gauge Max: 16 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Lock Mate Feature: On the terminal
Termination Style: Crimp
Ingress Protection: IP67
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position

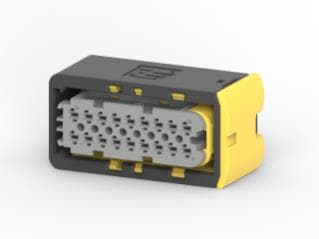

Description/Function: HDSCS, Housing for Female Terminals
Maximum Operating Temperature: + 140 C
Minimum Operating Temperature: - 40 C
