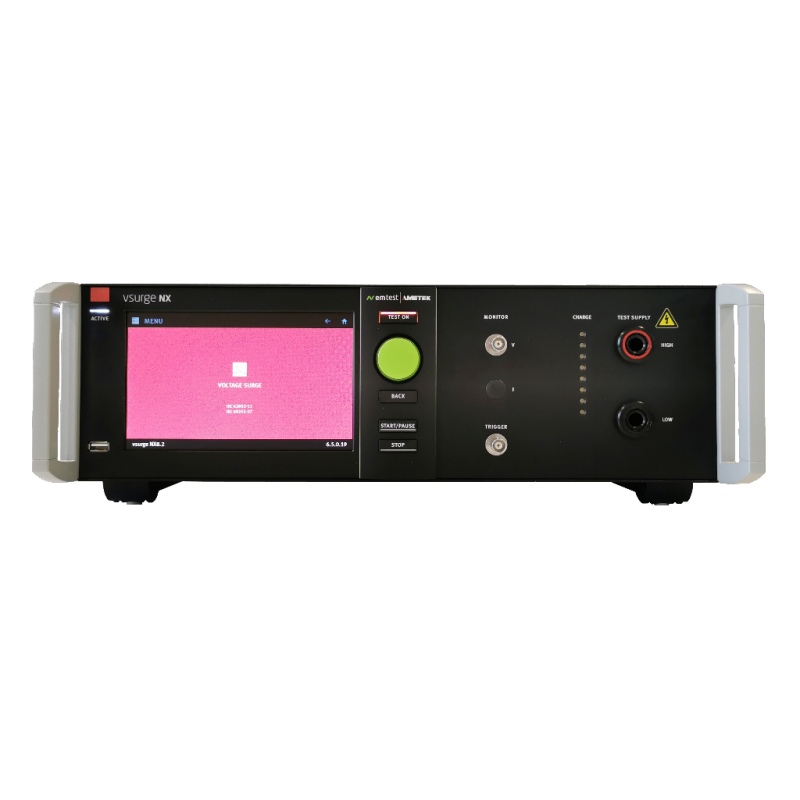

AMETEK CTS vsurge NX8.1 Voltage Surge Generator (8 kV; 0.5 J)

Voltage (o.c.): 1,000 V - 8,000 V, +0 % / -10 %

Pulse front time: 1.2 µs ± 30 %

Test levels: 1.0 kV, 1.5 kV, 2.5 kV, 4 kV, 5 kV, 6 kV, 8 kV

Pulse time to half value: 50 µs ± 20 %

Source impedance: 500 Ohm

Energy: 0.5 J ± 0.05 J at each test level

Pulse forming: As per IEC 61180-1

Polarity: positive / negative / alternating

Event counter: 1 - 30,000 or endless

Source impedance: 50 ohm ± 30 %

Peak voltage: 8,000 V in display

Peak current: 16 A in display

Dimensions, weight: 19" / 3 HU, 448 mm x 155 mm x 550 mm, 16.1 kg

Supply voltage: 85 - 264 V AC

Fuses: 115 V: 2 * 4 A (slow blow); 230 V: 2 * 2 A (slow blow)

Power: max. 95 W, 0.42 A, avg. 35 W, 0.15 A

Temperature: 10 °C to 35 °C

Humidity: 30 % to 75 %, non condensing

Atmospheric pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)

Interfaces: USB A/ B; Ethernet; Sys.link (26 pin); EUT Monitor

Datasheet
