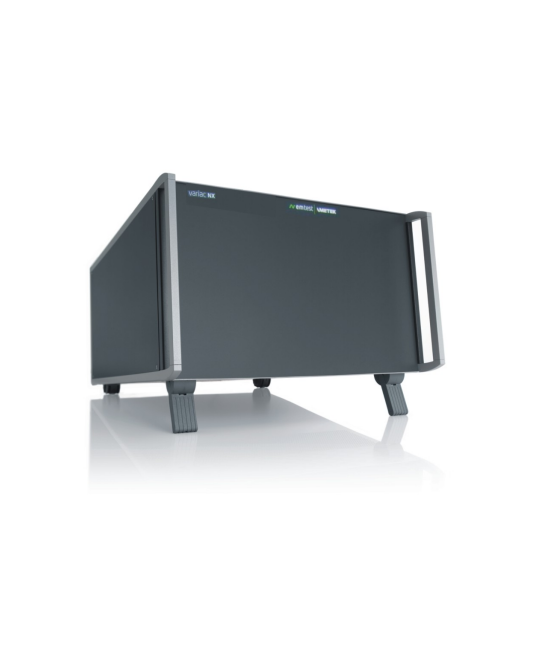

AMETEK CTS variac NX 1-260-32 Single Phase Motor Variacs (0 - 260 V, 32 A, @230 V, 0 - 130 V, 32 A, @115 V)

Input voltage: Max. 250 V

Frequency: 50 Hz/60 Hz

Output voltage:

0 - 130 V @115 V

0 - 260 V @230 V

0 - 275 V @250 V

Output current: Max. 32 A

Output power: 0 - 8,320 VA

Output PF1: Nominal mains supply voltage

Output PF2: 0 V - maximum output voltage (depending on the model and supplied mains supply voltage)

Output connectors: 4 mm safety lab connectors PF1, PF2, Neutral and PE

Mains switch: On/Off for the output voltages

Control voltage: Analog 0 - 10 VDC (0 V to max. output voltage)

Slew rate: < 2 seconds, full range

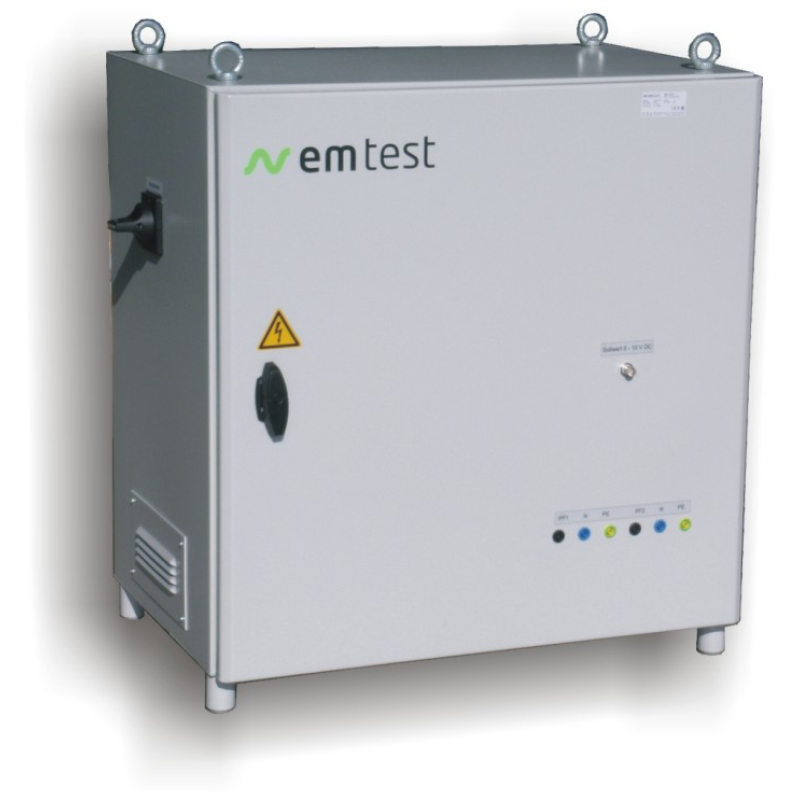

Dimensions: Rack mounted in 19" rack or mounted into a separate cubicle 680mm x 600mm x 410mm (HxLxW)

Weight: approx. 58 kg

Supply voltage: 115/230 V

Fuses: 35 A (PF1), 35 A (PF2)

Temperature: 10 °C to 35 °C

Humidity:30 % to 75 %, non condensing

Atmospheric pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)
