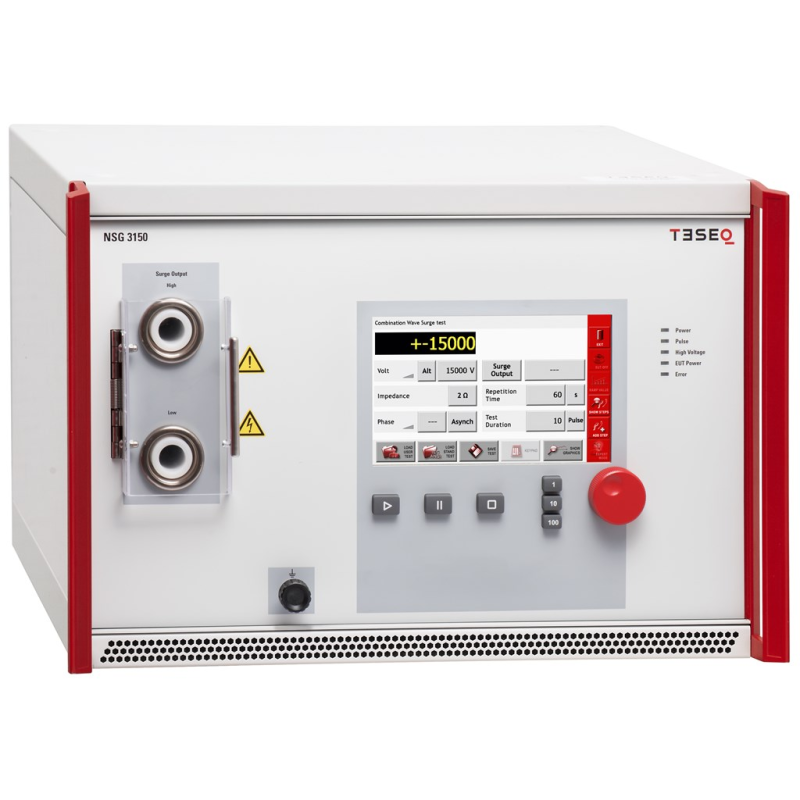

AMETEK CTS NSG 3150 Combination Wave Surge Generator (±500 V ~ 15 kV; ±250 A ~ 7.5 kA)

Pulse voltage (open circuit): ±500 V to 15 kV (in 1 V steps)

Pulse current (short circuit): ±250 A to 7.5 kA

Impedance: 2/12 Ω

Polarity: positive/negative/alternate

Pulse repetition: 20 .... 600 s (in 1 sec steps); 1 .... 10 min.

Test duration: 1 to 9999 pulses, continuous

Phase synchronization: asynchronous, synchronous 0 to 359º (in 1º steps)

Coupling: IEC/external

Instrument supply: 85 to 265 VAC, 50/60 Hz

Dimensions NSG 3150 WxHxD: 449 (17.7”) x 328 (12.9”; 7 HU) x 565 mm (22.2”)

Weight NSG 3150: Approx. 40 kg (88 lbs)
