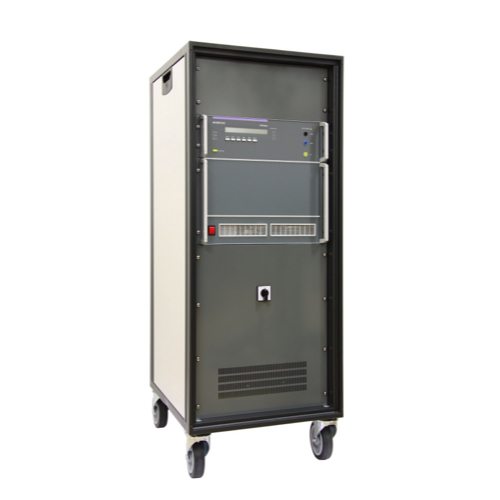

AMETEK CTS NetWave 7.3-208 Electronic Power Source (7.5 kVA; 360 V; 9 kW; ± 500 V)

Output Power AC: 7.5 kVA

Output Voltage AC: 360 V (isolated)

Output Current AC: max. 26 A cont. (at 300 V), 47 A for 3 s, 200 A repetitive peak

Output Power DC: 9 kW

Output Voltage DC: max. ± 500 V (isolated)

Output Current DC: max. 26 A cont. (at 360 V), 47 A for 3 s, 200 A repetitive peak

Frequency range: Large signal: 0 - 5 kHz, small signal: up to 35 kHz

Ripple: <50 V: 110 mV; >50 V: <200 mVrms + 0.02% of set value

Voltage Accuracy: DC: ±0.2 % of set value ±0.15 % of full scale, AC: add ±0.1 % of set frequency /1000

Phase Resolution: 1 °

Frequency Accuracy: 100 ppm

Slew Rate max.: 8000 V/ms

Compensation / Sense: internal / external sense, max. compensation 15%

Display and Controls: 2-Line LCD display, LED indicators, operating keys

Signal Generator: Integrated, 3 channels, 16 bit, 50 kSa/s per channel, min. 60 GB memory on hard disk

Safety: Emergency stop

Protection: Over current, over voltage, over temperature, low voltage, current limiter

Output Connectors: 4 mm lab plugs

Supply Frequency: 45 Hz – 65 Hz

Supply Voltage: 3 x 208 V, 3PH+N+PE

Supply Current: 21 A cont. / 42 A for 3 s, per phase

Supply Connector: Screw Terminal

Dimensions: Minirack 25HU, 600 x 800 x 1250 mm / 24 x 32 x 49 in

Net Weight: 120 kg / 265 lbs

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
