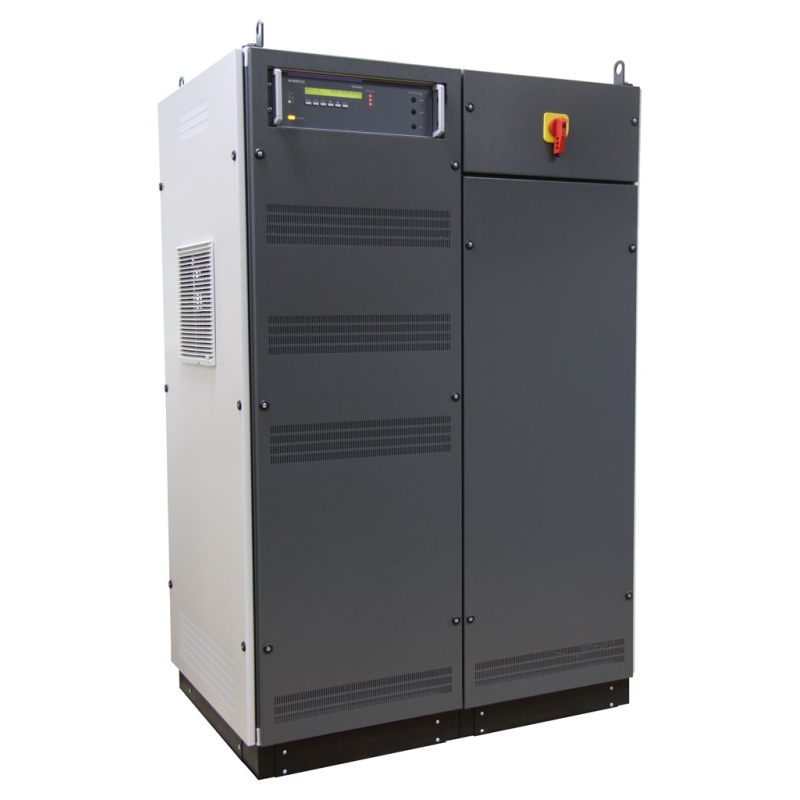

AMETEK CTS NetWave 67.2 Electronic Power Source (67 kVA; 360 V / 620 V; 72 kW; ±500 V, ±1000 VDC)

Output Power AC: 67 kVA

Output Voltage AC: 360 V (L-N) / 620 V (L-L)

Output Current AC: max. 75 A cont. per line (at 300 V), 100 A for 3 s, 400 A repetitive peak, max. 225 A (Opt-3 Parallel)

Output Power DC: 72 kW

Output Voltage DC: max. ±500 V, ±1000 VDC (Opt-3 DC -EVR)

Output Current DC: max. 75 A cont. (at 320 V), 100 A for 3 s, 400 A repetitive peak, max. 225 A (Opt-3 Parallel)

Number of Lines: 3

Frequency range: Large signal: 0 - 5 kHz, small signal: up to 35 kHz

Ripple: <50 V: 110 mV; >50 V: <110 mVrms + 0.02% of set value

THD @ 50/60Hz, max.: 0.5 %

Voltage Accuracy: DC: ±0.2 % of set value ±0.15 % of full scale, AC: add ±0.1 % of set frequency /1000

Phase Resolution: 1 °

Frequency Accuracy: 100 ppm

Slew Rate max.: 8000 V/ms

Compensation / Sense: internal / external sense, max. compensation 15%

Display and Controls: 2-Line LCD display, LED indicators, operating keys

Safety: Emergency stop, external relay control

Protection: Over current, over voltage, over temperature, low voltage, current limiter

Trigger Modes: Input: 2x trigger, 2x DUT monitor; Output: 2x Trigger

Output Connectors: Screw terminal, 6 mm lab plugs

AC Supply:

-400: 3 x 400 V, 160 A cont. / 212 A for 3 s, per phase

-480: 3 x 480 V, 134 A cont. / 176 A for 3 s, per phase

3PH + PE (no neutral)

45 - 65 Hz

Supply Connector: Screw Terminal

Dimensions:

2080 x 1205 x 970 mm

2080 x 1615 x 970 mm with recovery option

Net Weight:

1180 kg

1380 kg with recovery option

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
