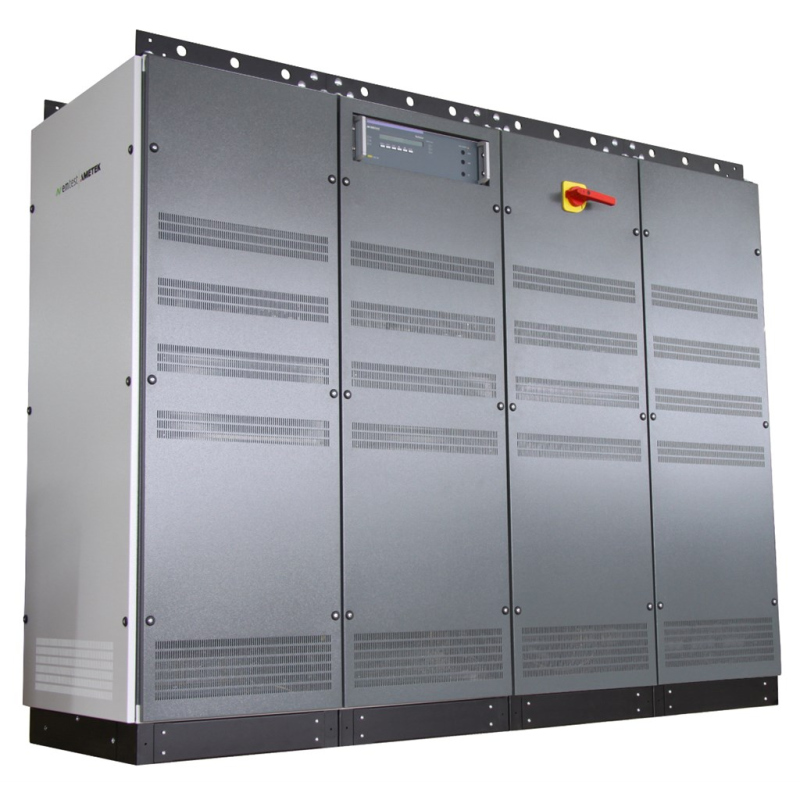

AMETEK CTS NetWave 108.5-400 Electronic Power Source (3 x 400 V, 3PH+PE)

Compensation / Sense: internal / external sense, max. compensation 15%

Display and Controls: 2-Line LCD display, LED indicators, operating keys

Safety: Emergency stop, external relay control, interlock

Protection: Over current, over voltage, over temperature, low voltage, current limiter

Trigger Modes: Input: 2x trigger, 2x DUT monitor; Output: 2x Trigger

Output Connectors: Screw terminal, 6 mm lab plugs

Supply Voltage: 3 x 400 V, 3PH+PE

Supply Current: 252 A / phase continuous, 381 A for 3s

Supply Connector: Screw Terminal

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
