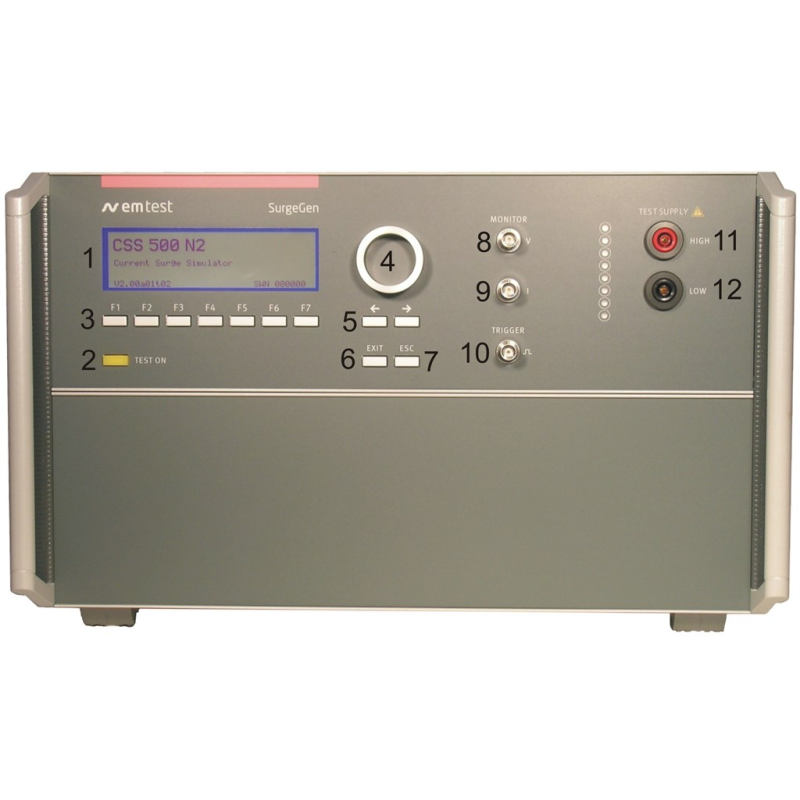

AMETEK CTS CSS 500N2 Current Surge Generator (8/20us; 1,200A)

Current Surge 8US/20US

Charging voltage: 100 - 2,500V

Output current: Max. 1,200A +10%/-10%

Pulse front time :8us +20%/-20%

Pulse time to half value: 20us +20%/-20%

Current range:

Range I: 1 - 18 A

Range II: 6 - 140 A

Range III: 40 - 1,200 A

Repetition rate: 1 - 100 s

Polarity: Positive/negative/alternating

Event counter: 1 to 30,000 or endless selectable

Serial interface: USB

Parallel interface: IEEE 488, addresses 1 to 30

Warning lamp: Floating output contact 250V/5A

Safety interlock: Security switch off

Dimensions, weight: 19"/6HU, approx. 25kg

Supply voltage: 115V/230V +10/-15%

Fuses: 2 x 2AT / 4AT
