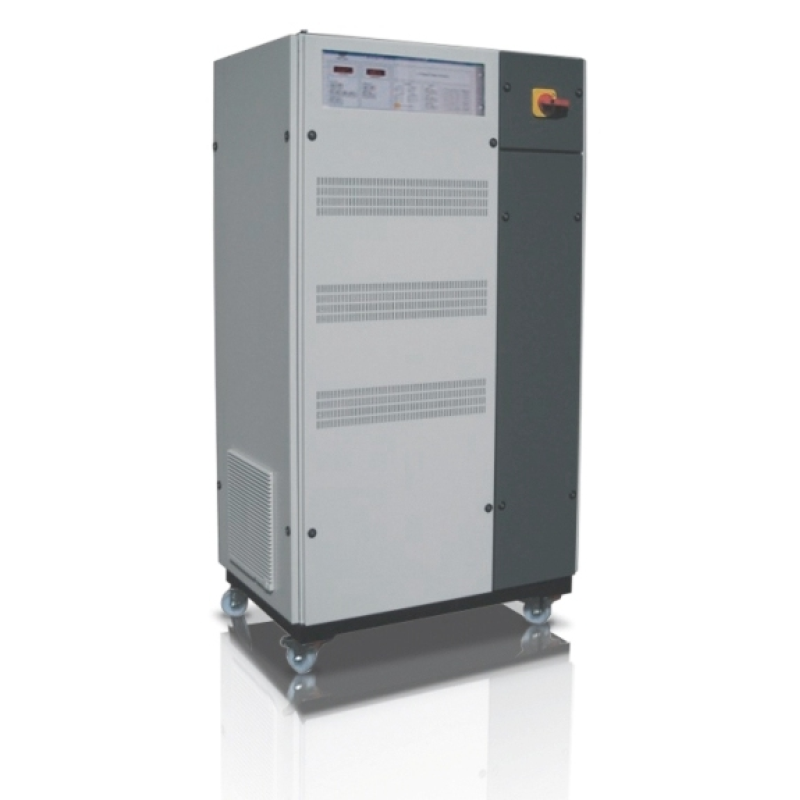

AMETEK CTS ACS 503N16 Programmable AC Source (16 kVA; 300 V)

Output Power AC: 16 kVA

Output Voltage AC: 300 V

Output Current AC: inductive load: 29 A (31 A), resistive: 15.5 A (14 A), capacitive: 8.3 A (6.2 A) cont., 66 A (68 A) for 3 s, 300 A repetitive peak

Frequency range: 40 to 80 Hz full voltage, 10 to 40Hz reduced voltage (25% at 10 Hz)

THD @ 50/60Hz, max.: 0.5 %

Voltage Accuracy: better than 0.5% full scale

Frequency Accuracy: 100 ppm

Compensation / Sense: internal / external sense, max. compensation 5%

Signal Generator: integrated, sine wave

Protection: Over current, over voltage, over temperature, under voltage

Output Connectors: safety laboratory connectors, CEE 3ph connector

AC Supply: 3 x 400 V (3P, PE), 45 A per phase

Supply Frequency: 45 Hz – 65 Hz

Supply Connector: Screw terminals

Dimensions: 1670 x 920 x 625 mm

Net Weight: 400 kg

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
