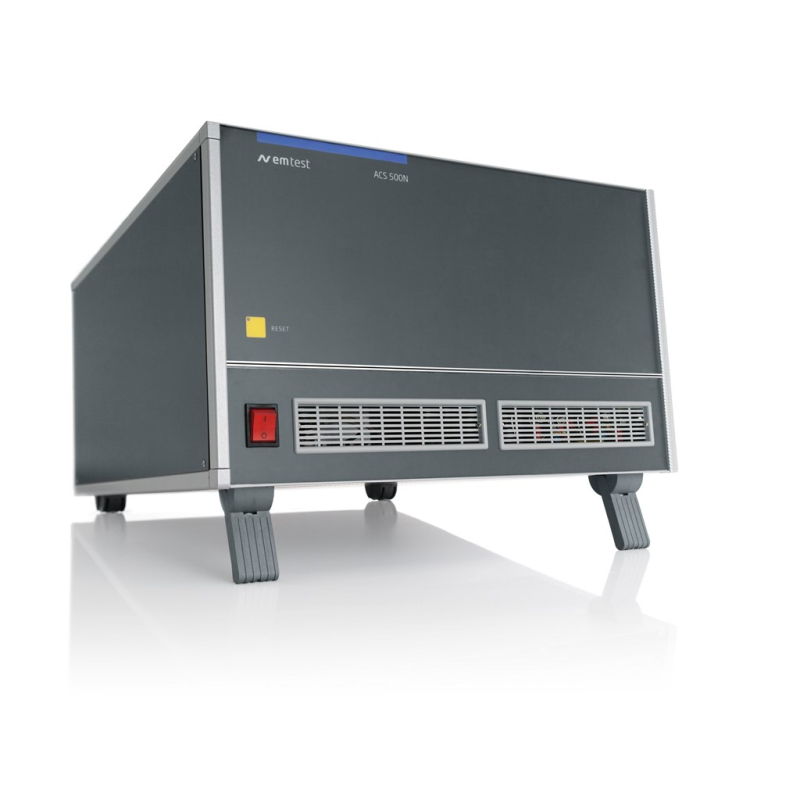

AMETEK CTS ACS 500N3 Programmable AC Source (3 kVA; 300 V)

Output Power AC: 3 kVA

Output Voltage AC: 300 V

Output Current AC: max. 12.1 A cont. (at 300 V), 21.8 A for 3 s, 80 A repetitive peak

Frequency range: 10 to 80 Hz

THD @ 50/60Hz, max.: 0.5 %

Voltage Accuracy: better than 0.5% full scale

Frequency Accuracy: 100 ppm

Compensation / Sense: internal / external sense, max. compensation 5%

Signal Generator: integrated, sine wave

Protection: Over current, over voltage, over temperature, under voltage

Output Connectors: 4 mm lab plugs

AC Supply: 1 x 230 V (L, N, PE), 25 A

Supply Frequency: 45 Hz – 65 Hz

Supply Connector: CEE type 16A (1 phase)

Dimensions: 287 x 449 x 500 mm

Net Weight: 23 kg

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)

Datasheet
