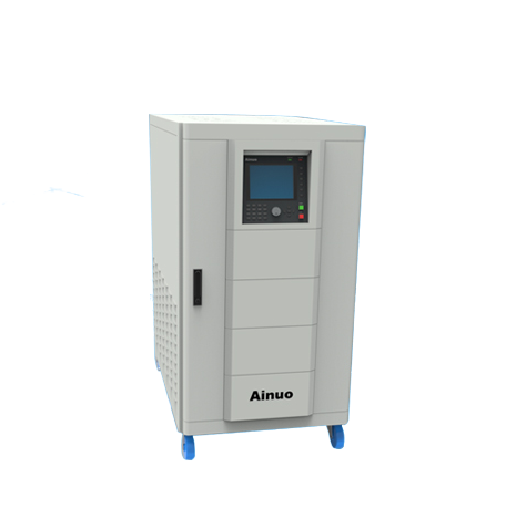

Ainuo ANFS060A(F) New Generation AC Power Supply (60 kVA; 90.9A)

Name: Ainuo ANFS060A(F) New Generation AC Power Supply (60 kVA; 90.9A)
Brand: Ainuo

ManufacturerAinuo(View more products from this manufacturer)

ModelANFS060A(F)

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Input: 3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity: 60 kVA
Output Frequency: 45.0~240.00Hz
Frequency Stability: ≤0.02%
Output Mode: 3 phaes mode, Seperated 3 phaes mode,parallel mode
Output Current: 90.9A
Line Regulation: ≤1%
Load Regulation: ≤1%
Phase retardation: 120°+2°
Modulating voltage range: ≤3V
Protection Mode: IGBT hot, IGBT OverCurrent, Transformer hot, Input Lack Voltage, Input Over Voltage, Output Lack Voltage, Output Over Voltage, Output Over Current, Output Over Power, Lack Output Phase
Voltage Drop Compensation: 0.000~0.500Ω
Communication：RS232（Standard), RS485（Options), GPIB（Options),Ethernet（Options)
Remote Control：Analog Control（Options)
Dimension W×H×D(mm): 700*1330*1218
Weihgt (kg): 590

Product Detail

Main features
* Adopt FPGA digital technology,realize precision control and high quality sine wave output;
* Advanced power output mode management:standard three-phase output,separated three-phase output(three-phase voltage and frequency adjusted independently), parallel single-phase output(three phase parallel,single-phase output)to achieve multi-function;
* Operating in over current shock(up to 3 times of rated current) within 2s,start the impact load of 1/3 capacity of powersupply directly;
* Adjustable voltage and frequency during output status,frequency change without transit time;
* Online monitoring:monitor IGBT temperature,transformer temperature,fan speed,input voltage and other parameters during output status;
* Operating data recorders:keep the record of power supply status and alarm code automatically during alarming,save the maintencance time;
* Fan speed will be adjustable automatically with the temperature of power supply to reduce the noise;
* Lock key,user-friendly design,automatically locking without operation for 5 minutes to prevent from opreation mistakes,
* 8 inch color LCD screen;
* Standard RS232,optional RS485,GPIB,Ethernet,analog control and other remote communication/control.

Order and Extensions
* ANFC three-phase AC pwer supply:1.0-300.0v/45.0-65.0HZ,100HZ,120HZ,200HZ,240HZ,optional 15kva,30kva,45kva,60kva,90kva,120kva,180kva,240kva.larger capacity can be modified.
* Communication interfaces:Standard RS-232, optional RS485,GPIB,Ethernet(Remarks:only can select one of RS-232,RS-485,GPIB,Ethernet).
* Remote control interface:optional analog control interface.
* PC control software

Spec.

Model/Specification		ANFS015A(F)	ANFS030A(F)	ANFS045A(F)	ANFS060A(F)	ANFS090A(F)	ANFS120A(F)	ANFS180A(F)	ANFS240A(F)
Input		3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity		15kVA	30kVA	45kVA	60 kVA	90 kVA	120 kVA	180kVA	240KVA
Output Frequency		45.0~240.00Hz
Frequency Stability		≤0.02%
Output Mode		3 phaes mode, Seperated 3 phaes mode,parallel mode
Output Current	110V	45.4A	90.9A	136.3A	181.8A	272.7A	363.6A	545.4A	727.2A
	220V	22.7A	45.4A	68.2A	90.9A	136.3A	181.8A	272.7A	363.6A
Accuracy	Voltage	Resolution：0.1V Accuracy：0.2%×reading+0.2%×F.S. (45Hz—65Hz)
	Current	Resolution：0.1A/1A Accuracy：0.3%×reading+0.3%×rated output
	Frequency	Resolution：0.1Hz Accuracy：0.05%
	Power	Resolution： 0.1kW / 0.01kW / 0.001kW Accuracy： 0.45%×reading+0.45%×F.S. (45Hz—65Hz)
Line Regulation		≤1%
Load Regulation		≤1%
Voltage Distortion		Linear load： THD＜1.5%(110V±10%，220V±10%，45-65Hz)；
Transient time		20ms
Phase retardation		120°+2°
Phase unbalance factor		≤1%
Crest factor		1.41±0.1
Modulating voltage range		≤3V
Over Power		105%≤Output＜110% the output will be stopped within 15 Sec. 110%≤Output＜210% the output will be stopped within 5 Sec. 200%≤Output＜300% the output will be stopped within 2 Sec. 300%≤Output the output will be stopped immediately
Protection Mode		IGBT hot、IGBT OverCurrent、Transformer hot、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Output Over Current、Output Over Power、Lack Output Phase
Voltage Drop Compensation		0.000~0.500Ω
Softstart Time		0.0~99.9S
Efficiency		＞86%
Shortcut Group		7 groups
Online Voltage Adjustment		The output voltage and frequency(45-65Hz) can be adjusted online under running status.
Communication/ Remote Control		Communication：RS232（Standard)、RS485（Options)、GPIB（Options)、Ethernet（
