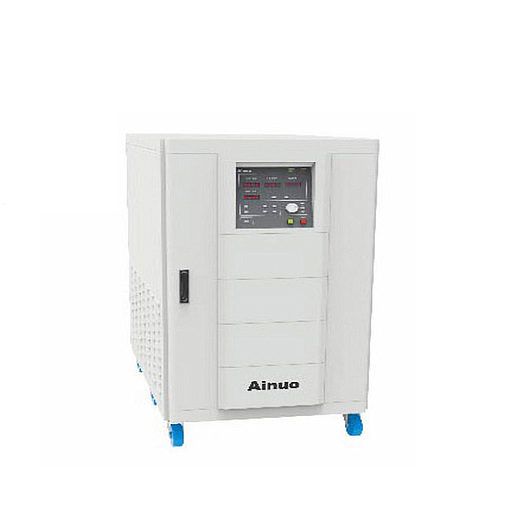

Ainuo ANFC045S(F) AC Power Supply ANFC Single-phase (45kVA, 204.5A)

Name: Ainuo ANFC045S(F) AC Power Supply ANFC Single-phase (45kVA, 204.5A)
Brand: Ainuo

ManufacturerAinuo(View more products from this manufacturer)

ModelANFC045S(F)

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Input: 3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity: 45kVA
Frequency Stability: 45.0~65.0H, 100H, 120H, 200H, 240Hz
Output Voltage: Single Phase，1.0~300.0V
Output Current: 204.5A
Line Regulation: ≤1%
Load Regulation: ≤1%
Modulating voltage range: ≤3V
Protection Mode: IGBT hot、IGBT OverCurrent、Transformer hot、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Output Over Current、Output Over Power
Voltage Drop Compensation: 0.000~0.500Ω
Communication：RS232（Standard), RS485（Options), GPIB（Options), Ethernet（Options)
Remote Control：Analog Control（Options)
Dimension W×H×D(mm): 700*1330*1218
Weight（kg): 370

Product Detail

Main featrues
* Adopt FPGA digital technology,realize precision control and high quality sine wave output;
* Three-phase loading separately,start single phase output by U/V/W fast settings;
* Operating in over current shock(up to 3times of rated current)within2s, start the impact load of 1/3 capcity of power supply directly;
* Adjustable voltage and frequency during output status;
* Measurement:voltage,current,frequency,active power;
* Online monitoring:monitor IGBT temperature,transformer temperature, fan speed,imput voltage and other parameters during output status;
* Operating data recorders:keep the record of power supply status and alarm code automatically during alarming;
* Volage range:1.0-1.50.0V or 150.1-300.0V automatic adjustment,or locked at 1.0-300.0V;
* Shortcuts groups,power-off menory,shortcuts key and knobs operation;
* Fan speed will be adjustable automatically width the temperature of power supply to reduce the noise;
* Lock key,user-friendly design,automatically locking without operation for 5minutes to prevent from operation mistakes;
* Standard RS232,optional RS485,GPIB,Ethernet,analog control and other remote communication/control.

Order and Extensions
* ANFC Single phase AC power supply:1.0-300.0V/45.0-65HZ,100HZ,120HZ,240HZ,optional 15KVA,30KVA,45KVA,60KVA,90KVA,120KVA,180KVA,240KVA.Larger capacity can be modified.
* Communication interfaces:Standard RS-232,optional RS485,GPIB,Ethernet(Remarks:only can select one RS-232,RS-485,GPIB,Ethernet).
* Remote control interface:optional analog control interface.
* PC control software

Spec.

Model/Specification		ANFC015S(F)	ANFC020S(F)	ANFC030S(F)	ANFC045S(F)	ANFC060S(F)	ANFC090S(F)	ANFC120S(F)
Input		3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity		15kVA	20kVA	30kVA	45kVA	60 kVA	90 kVA	120 kVA
Output Frequency		45.0~65.0Hz、100Hz、120Hz、200Hz、240Hz
Frequency Stability		≤0.02%
Output Voltage		Single Phase，1.0~300.0V
Output Current	110V	136.4A	181.8A	272.7A	409.1A	545.4A	818.2A	1090.9A
	220V	68.2A	90.9A	136.3A	204.5A	272.7A	409.1A	545.4A
Accuracy	Voltage	Resolution：0.1V Accuracy：0.2%×reading+0.2%×F.S. (45Hz—65Hz)
	Current	Resolution：0.1A(<1000A)/1A(≥1000A) Accuracy：0.3%×reading+0.3%×F.S.
	Frequency	Resolution：0.1Hz Accuracy：0.05%
	Power	Resolution：0.1kW /0.01kW /0.001kW Accuracy： 0.45%×reading+0.45%×F.S. (45Hz—65Hz)
Line Regulation		≤1%
Load Regulation		≤1%
Voltage Distortion		Linear load： THD＜1.5%(110V±10%，220V±10%，45-65Hz)；
Transient time		20ms
Crest factor		1.41±0.1
Modulating voltage range		≤3V
Over Power		105%≤Output＜110% the output will be stopped within 15 Sec. 110%≤Output＜210% the output will be stopped within 5 Sec. 210%≤Output＜310% the output will be stopped within 2 Sec. 310%≤Output＜410% the output will be stopped within 1 Sec. 410%≤Output the output will be stopped immediately
Protection Mode		IGBT hot、IGBT OverCurrent、Transformer hot、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Output Over Current、Output Over Power
Voltage Drop Compensation		0.000~0.500Ω
Softstart Time		0.0~99.9S
Efficiency		＞86%
Shortcut Group		7 groups
Online Voltage Adjustment		The output voltage and frequency(45-65Hz) can be adjusted online under running status.
Communication/ Remote Control		Communication：RS232（Standard)、</span
