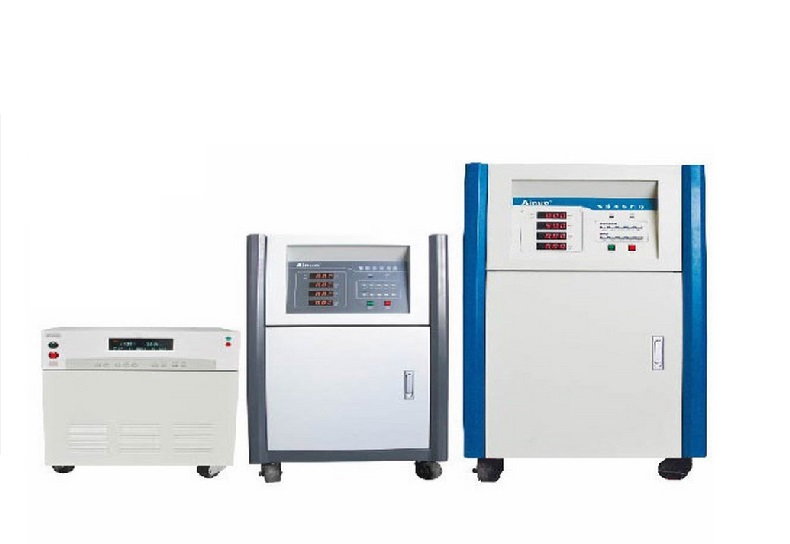

Ainuo AN97005H Frequency Converter AC Power Supply (5KVA, 22.8A)

Name: Ainuo AN97005H Frequency Converter AC Power Supply (5KVA, 22.8A)
Brand: Ainuo

ManufacturerAinuo(View more products from this manufacturer)

ModelAN97005H

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Output capacity: 5KVA
Output Current (220V): 22.8A
Input power: Single phase 200V±15%
Output phase: Single Phase
Output voltage: Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V
Output frequency: 45~65Hz continuous,adjustable
Frequency stability: 0.1%
Voltage stability: ≤1%
Transient recover time: 20ms
Over current protection: 1.05 rate, 1.1 rated
Protection mode: Short-circuit,overload and power device overheat protection
Display: VFD
Communication: Standard:RS232,Optional:RS485,Remote Control
Dimension: 483*750*400
Weight: 80 kg

Product Detail

Main features
High-frequency pulse-width modulation and IGBT driver,stable sine wave to simulate various state grid conditions,clean power;
Patented impact technlolgy for impact loads,such as resistive,capaciteive,inductive and mixed loads;
High-end clear VFD/LED high-density laminated structure,small size,light;
TS Series with over-voltage protection for internal circuits;
Online adjustable voltage/frequency to support remote PC communication control;
Over-current,over-power,overheating and abnormities protection,sound/light alarm;
Provide 6 shortcut groups to save voltage,frequency and upper/lower voltage deviation settings;
20KW and models provide cable drop compensation function to clear cable voltage drop;
Optional analog control interfaces for voltage/frequency output.
Order information and extended functions
AN97H Series:300V/45-65HZ,capacity 500VA 1kVA,2kvA,3kVA,5kVA,10kVA.
AN97TS series:300V/45-65Hz,capacity 15kVA,20kVA,30kVA,45kVA,60kVA,100kVA.
Output voltage can be up to 400V,600V,need to modify.

Type	AN97H series	AN97TS series
Input power	Single phase 200V±15%	3-phase 4-wires/3×220V±15%
Output phase	Single Phase
Output voltage	Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V
Output frequency	45~65Hz continuous,adjustable
Distortion	2%
Frequency stability	0.1%
Power effect	1%
Voltage stability	≤1%
Load effect	1%
Transient recover time	20ms
Over current protection	1.05 rate<="" span=""> 1.1 rated<="" span="">
Protection mode	Short-circuit,overload and power device overheat protection
Loading capacity	Can Start a inductive load which capacity is less than 0.5 rated power Capacity of AC power supply,or rectifier load which crest factor is less than 3.0
Memory function	Save the settings before turn off
Shortcut group	6 groups
Preset function	Output voltage,output frequency and output voltage tolerance can be preset under standby status
Adjustment online	Under running status,output voltage can be adjustable through “+”or”-“button
Voltage	Resolution:0.1V Accuracy: ±(0.8%×reading +0.2%×range)
Current	Resolution:0.001A/0.01A Accuracy: ±(2%×reading+1%×rated output)		Resolution: 0.01A Accuracy: ±(2%×reading+1%×rated output)
Power	Resolution:0.001KW/0.01KV Accuracy: ±5%		Resolution: 0.01KV Accuracy: ±5%
Display	VFD		LED 4-windows
Communication	Standard:RS232,Optional:RS485,Remote Control

Model		AN97000H(F)	AN97001H(F)	AN97002H(F)	AN97003H(F)		AN97005H		AN97010H(F)	AN97010TSH(F)
Output capacity		500VA	1kVA	2kVA	3kVA		5KVA		10 kVA	10 kVA
Output Current	110V	4.6A	9.2A	18.2A	27.4A		45.6A		91A	91A
	220V	2.3A	4.6A	9.1A	13.7A		22.8A		45.5A	45.5A
Efficiency		≥70%			≥80%
Dimension W×H×D(mm)		*483200380*		*483550400*		*483750400*		*483902600*
Weight（kg）		20kg		54kg	62kg		80		195
