1) Leakage current test
Load type: Single phase 6kW/triphase 20kW，static and dynamic leakage test
Alarm current setting: B network ：0～18.00mA；E network：0～6000 uA；G network：0～4500 uA；other network：0～9000uA
Leakage current measurement: 10.0uA～999.9uA; 1000uA～9999uA; 10.00mA～18.00mA
DUT parameters
+ Voltage range Accuracy: 30.0～300.0V（single phase），±（1%×reading+0.5V）
+ Current range: 0～23A/AC，over current protection is 25A
2) Extended function
Address setting: 1-255
Baud rate setting: 300，1200，2400，4800，9600，192000
Display screen: 320*240 LCD show
3) Interface function
Communication interface: Standard RS232. LAN,RS485,GPIB are optional
Printer interface, PLC interface, Remote control interface
4) General specification
Power requirements: 220V±10%，50Hz±5%，10A
Dimension（mm，with packing: 570(W)×340(H)×660(D)
Gross weigh（with packing: About 15kg

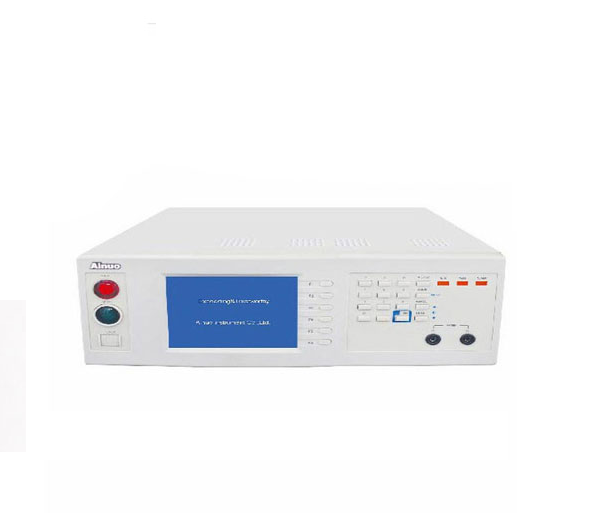

Product Detail
Main features
* Latest interrnational standard:Comply with CCC,IEC,EN VDE,BS,UL,JIS,standard requirements.
* Three and Single phase(300V/23A) leakage current test
* 7 kings of built-in networking MD card for leakage current test
* 8 kinds of visual programmable settings of DUT power input
* 3 test modes.L,N to GND,surface to surface and L,N to surface
* Upper/Lower limits judgment,test wires compensation,intelligent protection
* User pass word and keyboard lock function
* 8 groups of test memories,8 programming steps for each group
* 5.4 LCD display,menu operation.
Order infomation and extended functions
* AN9620TH(F),three/single-phase load compatible,multiple network leakage current test.
* AN9620H(F), single-phase load,multiple network leakage current test.
Spec.
|
Leakage current、grounding current test |
||
|
Load type |
AN9620H(F) |
Single phase 6kW，static and dynamic leakage test |
|
AN9620TH(F) |
Single phase 6kW/triphase 20kW，static and dynamic leakage test |
|
|
Alarm current setting |
Range |
With MD network automatic identification function。 B network ：0～18.00mA；E network：0～6000 uA； G network：0～4500 uA；other network：0～9000uA 0 means do not make judgment |
|
Test time setting |
Range，Accuracy |
0，1.0～999.9s（0 for infinite length）， ±（3%×setting+0.1s） |
|
Leakage current measurement |
Range Resolution |
10.0uA～999.9uA，0.1uA； 1000uA～9999uA，1uA； 10.00mA～18.00mA，0.01mA； |
|
Accuracy |
10uA～50uA，DC～1MHz：±（2%×reading+3uA） 50uA～18mA，DC～10kHz：±（2%×reading +0.5uA） 10k～200kHz：±（5%×reading +0.5uA） 200k～1MHz：±（5%×reading +1.5uA） Remarks：G network 10～50uA，accuracy 2%+12uA；50uA～100uA，accuracy为2%+4uA， |
|
|
DUT parameters |
Voltage range Accuracy |
30.0～300.0V（single phase），±（1%×reading+0.5V） |
|
Current range |
0～23A/AC，over current protection is 25A |
|
|
Extended function |
||
|
Communication function |
Address setting |
1-255 |
|
Baud rate setting |
300，1200，2400，4800，9600，192000 |
|
|
Verification mode setting |
None、odd、even |
|
|
Operation interface |
Display screen |
320*240 LCD show |
|
Interface language |
Chinese、English |
|
|
Alarming voice |
ON/OFF |
|
|
Password protection |
Four password Settings，password function can be set to ON/OFF |
|
|
Interface function |
||
|
Communication interface |
Standard RS232. LAN、RS485、GPIB are optional |
|
|
PLC interface |
standard，can output start、stop、test、pass、fail |
|
|
Printer interface |
standard，parallel printing interface |
|
|
Remote control interface |
optional， manual remote control box（start、stop） |
|
|
General specification |
||
|
Operating environment |
0～40℃ ， 40℃/（20～75）% RH，little dust |
|
|
Storage environment |
－40～60℃ ，50℃/（20～90）% RH，little dust |
|
|
Power requirements |
220V±10%，50Hz±5%，10A |
|
|
Power Consumption |
100～200VA（related to working condition） |
|
|
Gross weigh（with packing） |
<span style="font-size:7.5pt; font-family:"Times New Roman","serif";mso-fareast-font-fam |
|
