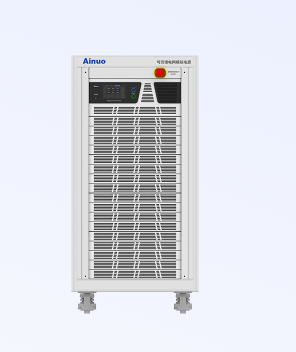

Power supply capacity: 50kVA
AC Input:
Voltage: Line voltage: 342V-480V; 3-phase 3-wire + PE
Current@342V: 110A Max
Frequency: 47~63Hz.
Power factor: ≥0.98.
AC Output
Phase number: Three-phase & Single-phase
Total power: 50kVA; Per phase power: 16.66kVA
Voltage
Range: 0.00-350.00V
Resolution: 0.01V; Accuracy: 0.1%F.S.
Distortion: 0.3%@50/60Hz;1%@30-100HZ
Source voltage effect: ≤0.02%.
Load effect: ≤0.02%.
Curent
Effective current range: Three-phase mode 120A; Single-phase mode 360A
Peak current range: Three-phase mode 360A; Single-phase mode 1080A
Frequency range/resolution/accuracy: 30.000~100.000HZ, 0.001Hz, 0.01%.
DC Output
Total power: 50kW; Power per channel: 16.66kW
Voltage range: -495.00~495.00V
Current range: Single channel 120A; Parallel connection 360A
Function:
Display: 5-inch color touch screen LCD
Waveform selection: Sine wave, triangle wave, square wave, clipped sine wave, 30 sets of built-in waveforms and 6 sets of custom waveforms.
Harmonics: 2-50 th
Harmonic and interharmonic simulation bandwidth: 3000Hz.
Sequence mode: 200 steps with 9,999 loops. Voltage, frequency, and phase angle can be programmatically outputted
Pulse mode: 9,999 loops. Cyclic changes in voltage amplitude, frequency, and angle
Step mode: 9,999 loops. Change the voltage frequency according to the set voltage and frequency step values
Communication interface: RS485 (standard), Ethernet (standard), synchronization signal (standard), RS232 (optional), GPlB (optional)
Remote control: None
Temperature/Humidity: 0~40°C / 30~90%RH.
Efficiency: ≥92%
Protection: Input abnormalty, bus overvoltage, output overvoltage and undervollage, output overcurent, output overoad, and module overheating
Dimensions (W×H×D): 600x1230x1000 mm.
Weight: ≤330kg.
