Input: three phase three wires, 380V±38V,47Hz~63Hz
Voltage: 0～600V
Current: 0～17A
Power: 0～10KW
Display: VFD, 5 digit
Ripple&Noise 20Hz-20MHz
+ Vrms: 60mV
+ Vpp: 350mV
Noise: ≤65dB
Protection Function: Lack phase protection, output OV protect, over heat protect, short circuit protect
Transient Response Time: 1ms
Communication Function: RS232
Dimension W×H×D(mm): 429*132*610
Weight: 32 kg
Product Detail

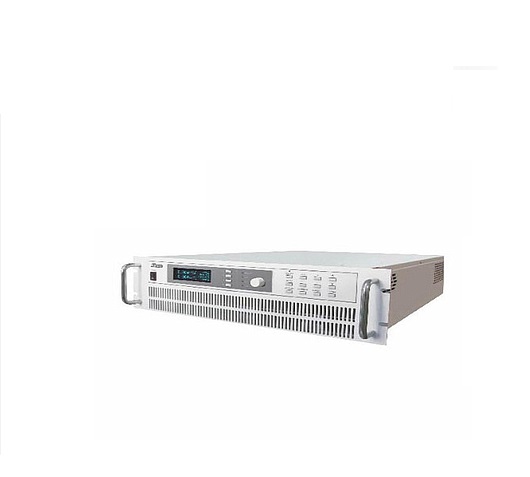

This AN51XXX series programmable DC power supply is deigned in various models with the voltage up to 1000V,power up to 1MW,adopting high-frequency switching and advanced control technology,featuring super high power density,full series standard cabinet,low ripple,high accuracy and fast dynamic response speed,An attractive appearance,small size,high performance,multi-function,simple operation with international advanced level of DC power supply,widely used in power electronics,DC motor testing,automatic integration test system,medical equipment,industries,batteries charging and simulation,hybird cars and solar inverter testing,laboratories and institutes etc.
Main features
* High-power density,3U standard chassis,power capacity up to 15KW
* Wide voltage output range 0-1000V,singel unit power capacity range 5KW-15KW
* 10 units combination up to 1MW
* Fast transient response function
* High accuracy,adopts 16 bits AD,low ripple wave
* VFD display,flexible interface,Chinese/English operation
* Flexible and supper List test function,20 steps/list,50 lists in total
* Complete protection,reliable safety preformance
* Analog control interface,able to control output independently through external analog interface of power supply
* Provide solar array I-V curve,simulate solar battery output character and different I-V curve under different temperature
Order information and extended functions
* AN51005-300(F):300V/16A/5KW
* AN51010-300(F):300V/33A/10KW
* AN51015-300(F):300V/50A/15KW
* AN51005-600(F):600V/8A/5KW
* AN51010-600(F):600V/17A/10KW
* AN51015-600(F):600V/25A/15KW
* AN51005-1000(F):1000V/5A/5KW
* AN51010-1000(F):1000V/10A/10KW
* AN51015-1000(F):1000V/15A/15KW
|
Mode No. |
AN51005-300 |
AN51010-300 |
AN51015-300 |
AN51005-600 |
AN51010-600 |
AN51015-600 |
AN51005-1000 |
AN51010-1000 |
AN51015-1000 |
|
|
Input |
three phase three wires, 380V±38V,47Hz~63Hz |
|||||||||
|
Output |
Voltage |
0～300V |
0～600V |
0～1000V |
||||||
|
Current |
0～16A |
0～33A |
0～50A |
0～8A |
0～17A |
0～25A |
0～5A |
0～10A |
0～15A |
|
|
Power |
0～5KW |
0～10KW |
0～15KW |
0～5KW |
0～10KW |
0～15KW |
0～5KW |
0～10KW |
0～15KW |
|
|
Display |
VFD，display in both English and Chinese， 5 digits |
|||||||||
|
Setting Accuracy |
Voltage |
≤±0.15% F.S,resolution is 0.01V |
||||||||
|
Current |
≤±0.4% F.S, resolution is 0.1A |
|||||||||
|
Measurement Accuracy |
Voltage |
≤±0.15% F.S,resolution is 0.01V |
||||||||
|
Current |
≤±0.4% F.S,resolution is 0.1A |
|||||||||
|
Ripple&Noise |
Vrms |
50mV |
60mV |
1950mV |
||||||
|
Vpp |
300mV |
350mV |
2550mV |
|||||||
|
Power Voltage Effect |
voltage: ±0.01% F.S; current:±0.05% F.S（380VAC +/-10%input，load invariant） |
|||||||||
|
Load Effect |
voltage: ±0.02% F.S; current:±0.1% F.S（380VAC +/-10%input，load invariant） |
|||||||||
|
Noise |
≤65dB |
|||||||||
|
Effciency |
≥ 0.87 (380VAC input, full load) |
|||||||||
|
Remote Analog Accuracy |
Voltage：±0.25%F.S(0-5V),0.5% F.S(0-10V) |
Voltage：±0.4%F.S(0-5V),0.8% F.S(0-10V) |
||||||||
|
Protection |
Lack phase protection, output OV protect, over heat protect, short circuit protect |
|||||||||
|
Transient Response Time |
1ms |
|||||||||
|
Max. Lead Wire Voltage Drop Compensation |
5% (40V-100V);2%(>100V) |
|||||||||
|
Communication |
RS232 |
|||||||||
|
Memory Function |
Can preset 10 groups parameters |
|||||||||
|
Temperature Drifts |
Voltage:0.02%Vmax/℃; Current:0.03%Vmax/℃ |
|||||||||
|
Time Drifts |
±0.05% * setting |
|||||||||
|
Working Environment |
Operating Temperature:0℃50℃ |
|||||||||
|
Dimension |
429*132*610(W*H*D), standard 3U case |
|||||||||
|
Weight |
27kg |
32kg |
37kg |
27kg |
32kg |
37kg |
