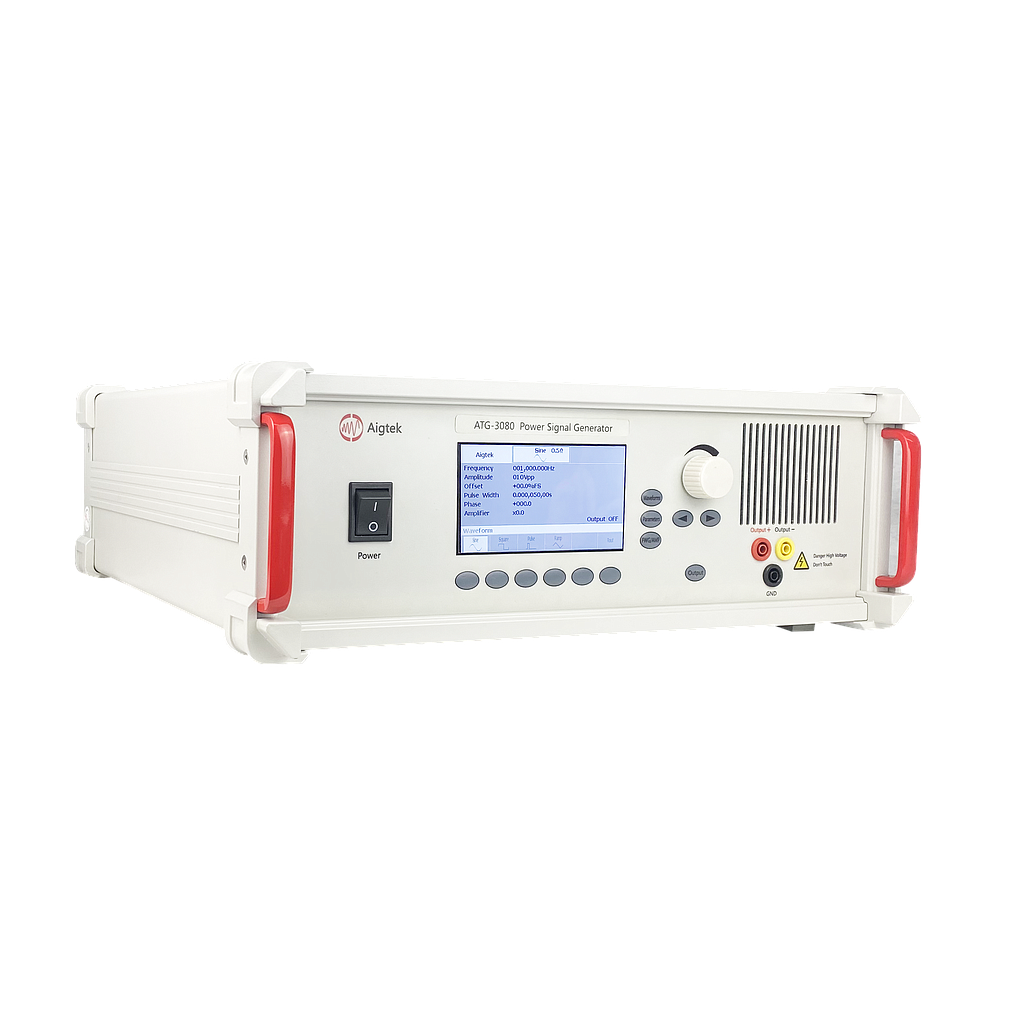

Model: ATA-3080
Output form: Differential output
Bandwidth (-3dB): DC~100kHz
Maximum output voltage: 180Vp-p (±90Vp)
Maximum output current: 8Ap
Maximum output power: 720Wp
Fuse: 8A/250V
Voltage gain: x0~60 (0.1 step)
Load RL upper limit: ≥11.25Ω
Output resistance: 0.5Ω /100Ω (Customizable)
Slew Rate: 60V/μs
Input resistance: 50Ω / 5kΩ
Input amplitude: 0~10Vp-pMAX
Output voltage error: ≤±3%FS@1kHz
Total harmonic distortion (THD): ≤0.1%@1kHz，90Vp-p
Output voltage zero-point drift: ≤0.3V
Signal-noise ratio(SNR): ≥80dB
Output Connector: 4mm Banana socket
Protection: Overcurrent protection
Signal Ground: It is connected with the grounding of the shell and the power line
Supply voltage: AC220V±10%，50Hz
Operating temperature: 0℃~45℃
Storage temperature: -20℃~50℃
Humidity: ≤80%RH，no condensation
Size: (W * H * D) 440*163*470mm
