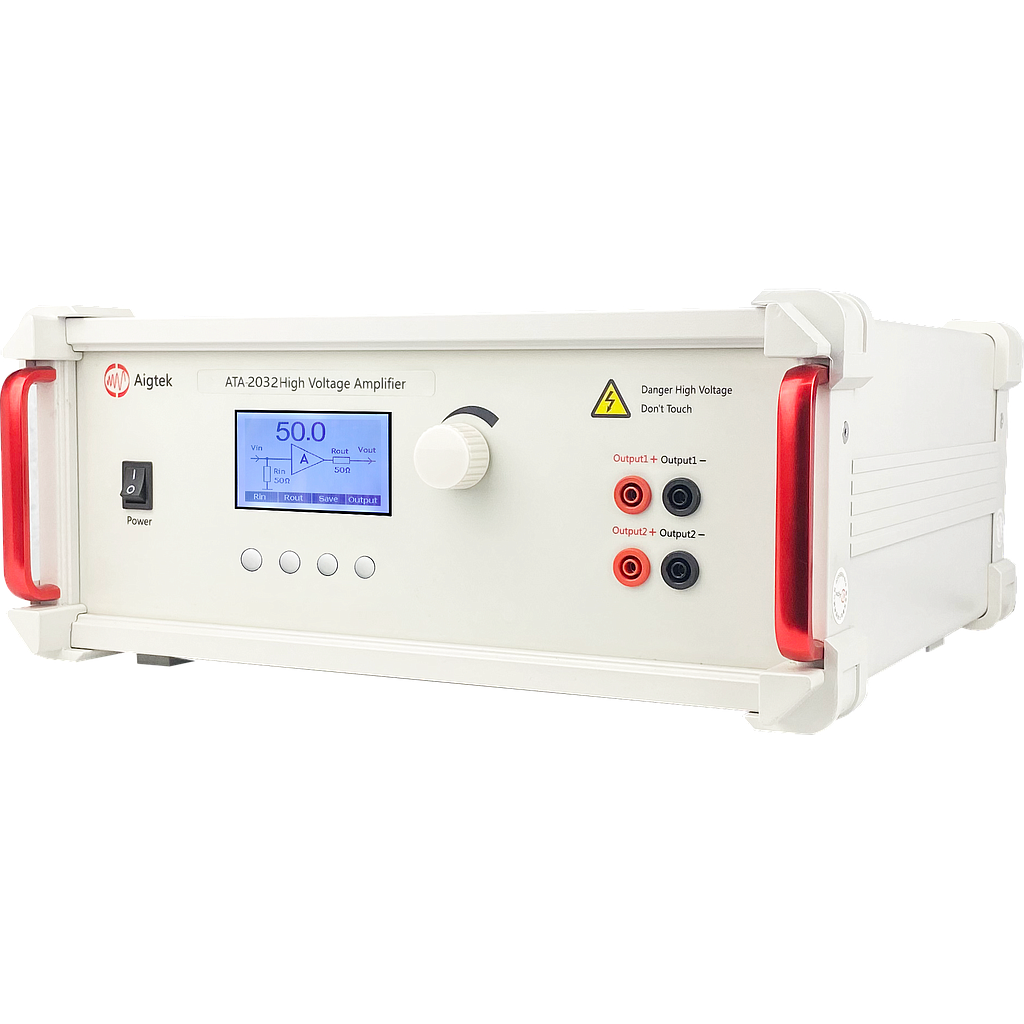

Model: ATA-2032
Number of channels: 2
Output form: Single output
Bandwidth（-3dB: DC~500kHz
Maximum output voltage: 300Vp-p（±150Vp)
Maximum output current: 120mAp
Maximum output power: 18Wp
Fuse: 2A/250V
Voltage gain: x0~50（0.1 step）
Load RL upper limit: ≥1.25kΩ
Output resistance: 50Ω /2.5kΩ (Customizable)
Input resistance :50Ω / 5kΩ
Input amplitude :0~10Vp-pMAX
Output voltage error: ≤±3% FS@1kHz
Voltage monitoring :100:1（±5%）
Slew Rate: 500V/μs
Total harmonic distortion （THD): ≤0.1%@1kHz，100Vp-p
Output voltage Zero-point drift: ≤0.1V
Signal-noise ratio(SNR): ≥80dB
Output Connector: 4mm Banana socket
Protection: Overcurrent protection
Signal Ground: It is connected with the grounding of the shell and the power line
Supply voltage: AC220V±10%，50Hz
Operating temperature :0℃~45℃
Storage temperature :-20℃~50℃
Humidity: ≤80%RH，No condensation
Size (W * H * D): 365*163*365mm
