CPU: Intel® Celeron® J6412 quad core
Frequency: 2.0 GHz
L2 Cache: 1.5 MB
Memory: 1 x SDRAM DDR4 3200 MHz (max. 32G)
Storage: 1 x 2.5\
Network (LAN): 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 2 x USB 2.0, 2 x USB 3.1; 1 x Type C (USB only); 1 x HDMI1.4; 1 x TPM 2.0
Expansion: 1 x M.2 2230 E-key for wireless card
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 558 x 350 x 61 mm (22 x 13.8 x 2.4 in)
Weight: 7.2 kg (15.87 lb)
OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux, Android
Input Voltage: 12 ~ 30 VDC
Power Consumption: 50W (Burn-in test 8.1 in Windows 10, 64-bit)

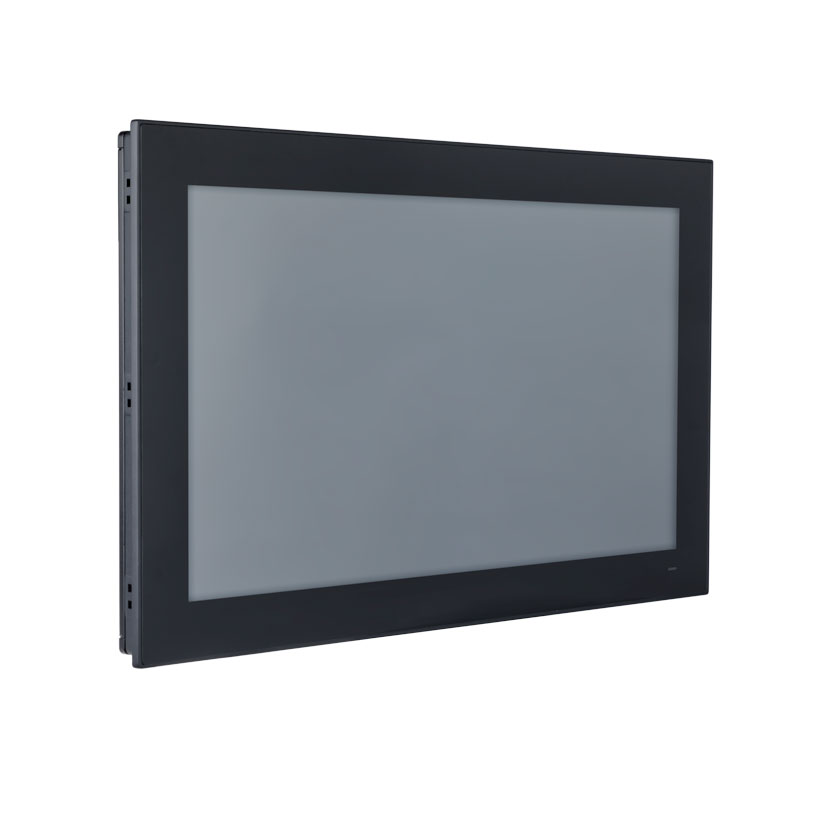

Display Type: 21.5 inch TFT LCD (LED backlight)
Resolution: 1920 x 1080
Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ): 250
Contrast Ratio: 1000
Backlight Lifetime: 50,000 hr (min.)
Touch Type: 5-wire resistive touch
Controller: USB interface
Operating Temperature: -10 ~ 50°C (14 ~ 122°F)
Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA, VCCI
Front Panel Protection: IP66 compliant
