- Spectral Wavelength: ~3.9 μm narrowband pass filter
- Resolution: 320 x 240
- Speed: 30 Hz / 9 Hz
- Protective Housing: Stainless steel enclosure with vortex air cooling (air is only required for longterm monitoring)
- Measurement Range: 500 ~ 1600°C (932 ~ 2912°F)
- Video Out: NTSC / PAL
- Power Supply: Included, input is universal AC
- Camera Weight: < 13.5 kg (30 lb)
Lens:
- Lens Shroud Outer Diameter: 42 mm (1.65")
- Lens Length:
18" ("A" Dimension 15.75" [400 mm])
24" ("A" Dimension 22.50" [572 mm])
36" ("A" Dimension 34.10" [866 mm])
- Field of View (H x V): 50° x 38°
Base Camera System Components:

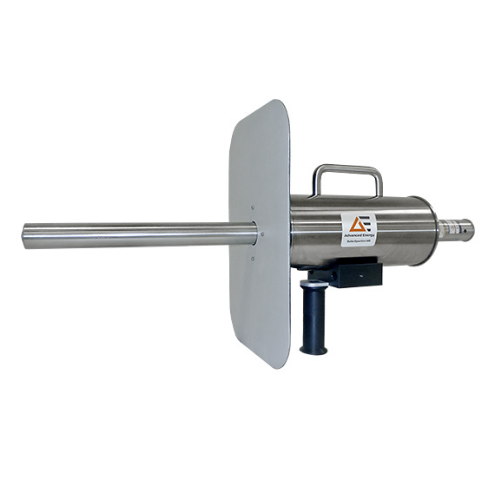

- BoilerSpection MB Camera with 18”, 24”, or 36” lens
- Removable radiation shield
- Power and Ethernet connection cables
- Software for image recording and analysis
- Camera storage and travel case
- User manual
Accessory Kit Components:
- 4.5 m (15') flexible stainless braided air lines with fittings
- Dual stage air filters with regulators
- Industrial grade laptop computer with software pre-installed
- LumaSpec Offline Analyzer
- Accessory kit storage and travel case
- Bottom mounted handle (see below)
