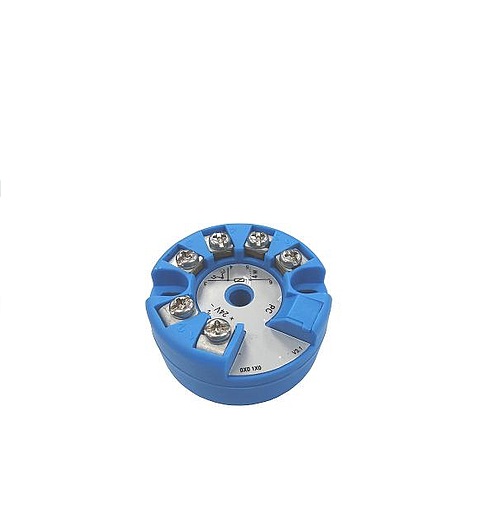

Input Type: RTD Pt100Ω; Thermo-couple type K, J, E, T, R, S, B
Output: 4~20mA
Input Impedance: ≥ 5M ohm
Accuracy: ≤ ±0.2%
Load Resistance: ≤ ( Vs-12 ) / 0.022 (ohm)
Protection: IP 42
Dimensions: 44.0mm(W) x 21mm(H)
Insulation resistance: ≥ 100MΩ at 500Vdc
Power supply: DC 12~35V

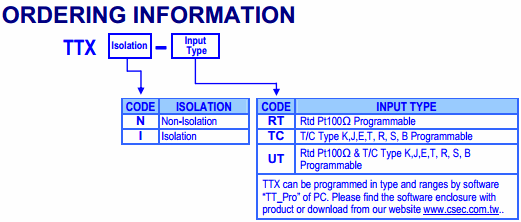

Select the bottom ordering
Datasheet
Option:
- Code RT: RTD Pt100
- Code TC: T/C Type K, J, E, T, R, S, B
- Code UT: RTD Pt100 and T/C Type K, J, E, T, R, S, B
- Isolated TTX
- USB Cable for Programing
