DESCRIPTION

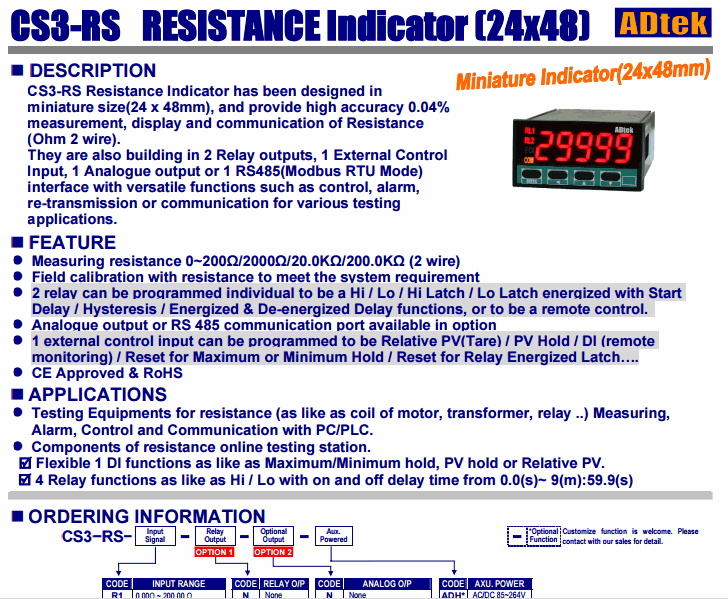

CS3-RS Resistance Indicator has been designed in
miniature size(24 x 48mm), and provide high accuracy 0.04%
measurement, display and communication of Resistance
(Ohm 2 wire).
They are also building in 2 Relay outputs, 1 External Control
Input, 1 Analogue output or 1 RS485(Modbus RTU Mode)
interface with versatile functions such as control, alarm,
re-transmission or communication for various testing
applications.
FEATURE
● Measuring resistance 0~200Ω/2000Ω/20.0KΩ/200.0KΩ (2 wire)
● Field calibration with resistance to meet the system requirement
● 2 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch energized with Start
Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
● Analogue output or RS 485 communication port available in option
● 1 external control input can be programmed to be Relative PV(Tare) / PV Hold / DI (remote
monitoring) / Reset for Maximum or Minimum Hold / Reset for Relay Energized Latch….
● CE Approved & RoHS
APPLICATIONS
● Testing Equipments for resistance (as like as coil of motor, transformer, relay ..) Measuring,
Alarm, Control and Communication with PC/PLC.
● Components of resistance online testing station.
; Flexible 1 DI functions as like as Maximum/Minimum hold, PV hold or Relative PV.
; 4 Relay functions as like as Hi / Lo with on and off delay time from 0.0(s)~ 9(m):59.9(s)
