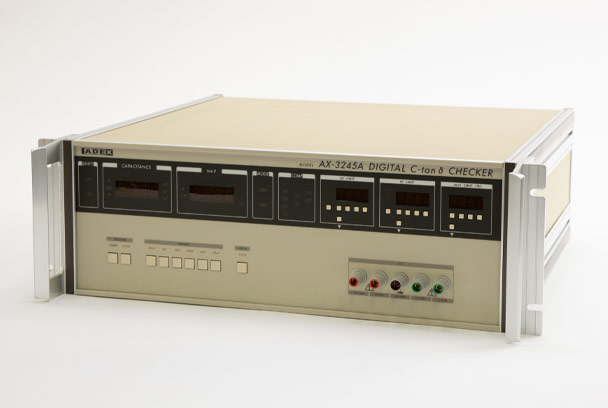

Measuring range and Accuracy (at23*C±5*C) *D＜1 Series equivalent circuit
Range: 400nF/ 4μF/ 40μF/ 400μF/ 4mF
Accuracy: ±0.5％±2 (digit)
tanδ Accuracy: ±[tanδ(digit)×0.3/100 + 2 + 2000/Cx(digit)]xdigit
Measuring mode series equivalent circuit
Range: 40mF
Accuracy: 1％±5 (digit)
tanδ Accuracy: ±[tanδ(digit)/100 + 5 + 2000/Cx(digit)]xdigit
Measuring mode series equivalent circuit
※When tanδis 100.0％～199.9％, the accuracy of C or tan δ will be twice the above
Measuring mode: series equivalnet circuit
Measuring signal level: less than 400mV (r.m.s.)
Measuring method: signal application 2 terminals signal detection 2 terminals, five terminals measurement structure from guard terminal
Measuring frequency: within 120Hz±0.1％
Measuring terminal: Front panel section：5 pin terminal
The rear panel：Metal Circular Connectors 8P
Contact check: The function to perform measurement error if contact resistance detects over 200Ωcontact check input terminal more than one terminal
Input protection: The function to protect measurement circuit if non-electric discharge voltage of measurement sample detects over 2.2V on 4 terminals connection (stay voltage check)
Measuring time: [HOLD mode measurement time] about 105msec.
(Contact check & Check residual voltage) about 27msec.
(Time measurement stability) about 45msec.
(To open the measurement terminals) about 96msec.
[Measurement time free-running mode] about 3 times/sec.
Comparator setting: Capacity C：4 points LL, L, H, HH "200～3999"
Loss tanδ："1～199.9"
Comparator decision: Digital data comparison method
Judgment result display Capacity：CLO, CLG, CGO, CHG, CHI
tanδ：DGO, DNG
Total：C/D-GO
External output result of the judgment: GO1, GO2, CNG, DNG
Control signal Input：START, HOLD, RESET, CINH, SHIFT, NINH, GINH
Output：GO1, GO2, CNG, DNG, CER, COV, DER, DOV, CEND
MEND, BUSY, SLCT, CCE, VCE, Various shift determination
Operation condition: [Temp.] 5*C～＋40*C [Humidity] less than 85％
Power supply: AC100V～240V±10％, 50/60Hz, about 45VA
Outer dimension: about 432 (W) ×149 (H) ×450 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 12kg
