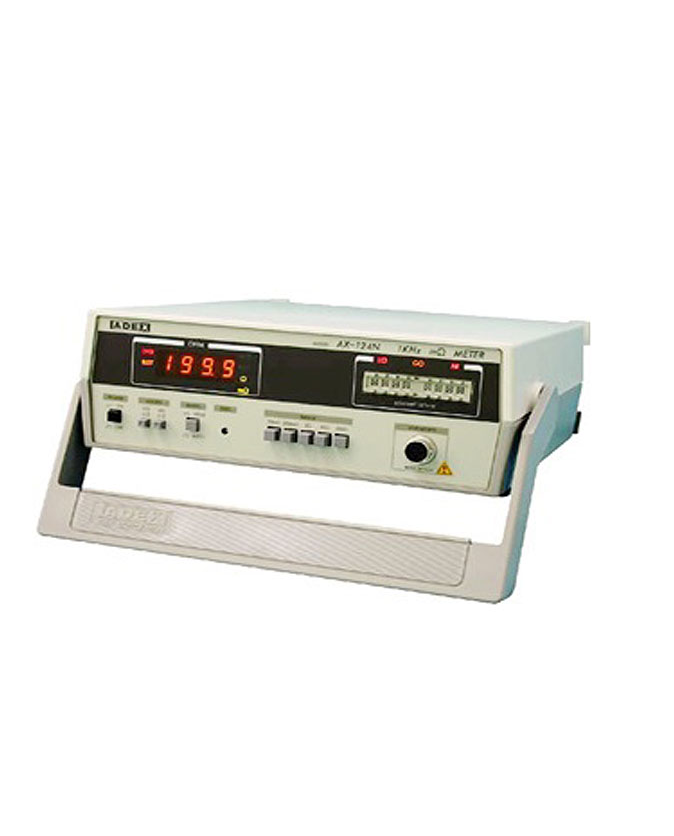

ADEX AX-124N Digital Milliohm Meter (0Ω ~ 199.9Ω)

Measuring range and Accuracy (at 23*C±5*C)

Range/ Measuring range/ Resolution/ Measuring current/ Accuracy

20mΩ/ 0.00 ～19.99mΩ/ 10μΩ/ 100mA/ within ± (0.3％rdg＋50μΩ＋2digit)

200mΩ/ 0.0 ～199.9mΩ/ 100μΩ/ 10mA/ within ± (0.3％rdg＋50μΩ＋2digit)

2Ω/ 0.000 ～ 1.999Ω/ 1mΩ/ 1mA/ within ± (0.3％rdg＋50μΩ＋2digit)

20Ω/ 0.00 ～ 19.99Ω/ 10mΩ/ 100μA/ within ± (0.3％rdg＋50μΩ＋2digit)

200Ω/ 0.0 ～ 199.9Ω/ 100mΩ/ 10μA/ within ± (0.3％rdg＋50μΩ＋2digit)

Test signal: 1kHz ±5% sine wave/applied voltage less than 20mV

Measuring method:4-terminal measurement

Sampling time

[Free running mode] 12.5 times/sec

[Remote start mode] 80msec

Measuring response time: about 0.5sec.

Comparator set range: 0000～1999 both for high and low limit

Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer

Control signal

remote start input

comparison output [LO/GO/HI]：open collector：max.50V, 100mA

end of comparison output [EOC]：open collector：max.50V, 100mA

measured value in BCD parallel (fan out 2)

print command (fan out 2)

range (fan out 2)

Power supply:AC100V～240V selectable, 50/60Hz, less than about 15VA

Outer dimension: about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 2.2kg
