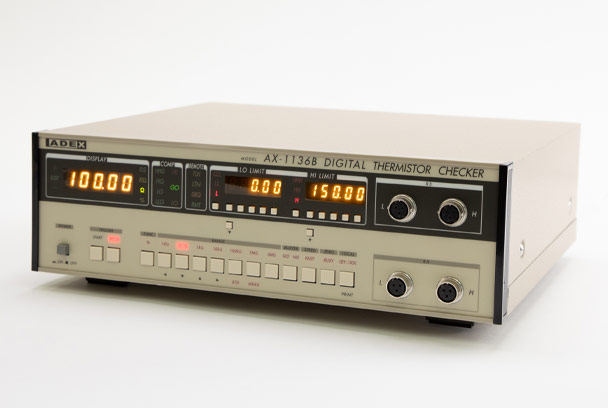

Measuring range and Accuracy (ambient temp 23℃±5℃)
Range: 10Ω ~ 10MΩ
Measurement range Resistance range 5%~150%
% measurement indication range
-99.99%~+50.00% (±5000 count display)
Resistance measurement indication range 0Ω~Resistance range×1.5 (0~15000 count display)
Measurement: % measurement Resistance value
Measuring current: 3.16mA ~ 0.63μA
Measurement integration time:[Slow]=AC1 period (20.0mS/16.6mS), [Fast]=4mS (10Ω~100kΩ range), 10mS (1MΩ, 10MΩ range)
α= (|Rs Count resistance measurement-10000|)/2000 digit
β= (|Rs Count resistance measurement-10000|)/1500 digit
Measurement integration time: [Slow]:AC1~10 cycles, [Fast]:0.1mS~99.9mS
Sampling time Free run:5 times per second [Slow], 10 times per second [Fast]
External control:Measurement integration time+(1~10mS) [Differs from range], The fastest about 1mS
Contact check: Selection setting of OFF・PRE・AFT・ALL, Check determination:47Ω±10Ω (Between I-V terminals)
Comparator set range: [Resistance measurement]:0~15000 count both for HI and LO (Resistance range=10000 count)
[% Measurement]:±0.00%~+50.00% both for HI and LO (±5000 count)
Display comparator decision Lo/GO/Hi judgment to indicate LED on each Rx1, Rx2, Buzzer setup
Machine interface control signal (Connector:57-40240 Equivalent)
Input:External start, External hold
Output:total 14 pcs, Open collector output (max. 40V, 100mA)
Judgment output:RxA・RxB=LO/GO/HI/CE, Rs=NG
Status output:EOC, RxA・RxB INDEX, Preliminary 2ch
RS-232C communication: Asynchronous, Baud rate:4800~38400bps, Dsub25S
Operation condition: [Temp.] +5*C~+40*C [Humidity] less than 85% (Disabled when condensation)
Power supply: AC85V~265V , 50/60Hz, about 60VA
Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 4kg
