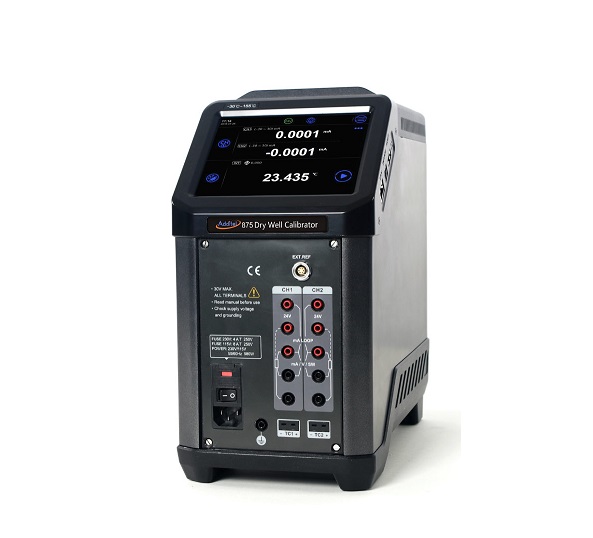

Additel 875-660 Dry well low temperature calibrator (33°C đến 660°C)

Specification

Temperature Range at 23℃: 33°C to 660°C

Display Accuracy:

± 0.3°C at 33°C

± 0.3°C at 420°C

± 0.5°C at 660°C

Stability (30 min):

± 0.02°C at 33°C

± 0.03°C at 50°C

± 0.04°C at 420°C

± 0.04°C at 660°C

Axial Uniformity at 60 mm (2.4 in):

± 0.05°C at 33°C

± 0.3°C at 420°C

± 0.5°C at 660°C

Radial Uniformity:

± 0.02°C at 33°C

± 0.05°C at 420°C

± 0.1°C at 660°C

Loading Effect:

±0.15°C (Display Sensor)

±0.025°C (External Sensor)

Hysteresis (Display Sensor): 0.1°C

Environmental Conditions:

8°C to 38°C guaranteed accuracy

0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation

Storage Conditions: -20°C to 60°C

IP Rating: IP20

Immersion Depth: 150 mm (5.9 in)

Insert OD: 24.8 mm (1.02 in)

Heating Time: 15 min: 33°C to 660°C

Cooling Time:

23 min: 660°C to 100°C

12 min: 100°C to 50°C

12 min: 50°C to 33°C

Typical Time to Stability: 10 min

Resolution: 0.01°C

Units: °C, °F, and K

Display: 6.5 in (165 mm) color touch screen

Size (H x W x D): 320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)

Weight: 8.2 kg (21.8 lbs)

Power Requirements: 90-254 VAC, 45-65 Hz, 1200 W

Mechanical Testing:

Vibration: 2 g (10-500 Hz), 30 min for 2 sides

Impact: 4 g three times

Drop test: 500 mm (19.6 in)

Communication: USB A, USB B, RJ45, WiFi, Bluetooth

Localization: English, Chinese, Japanese, Russian, German, French, Italian, and Spanish
