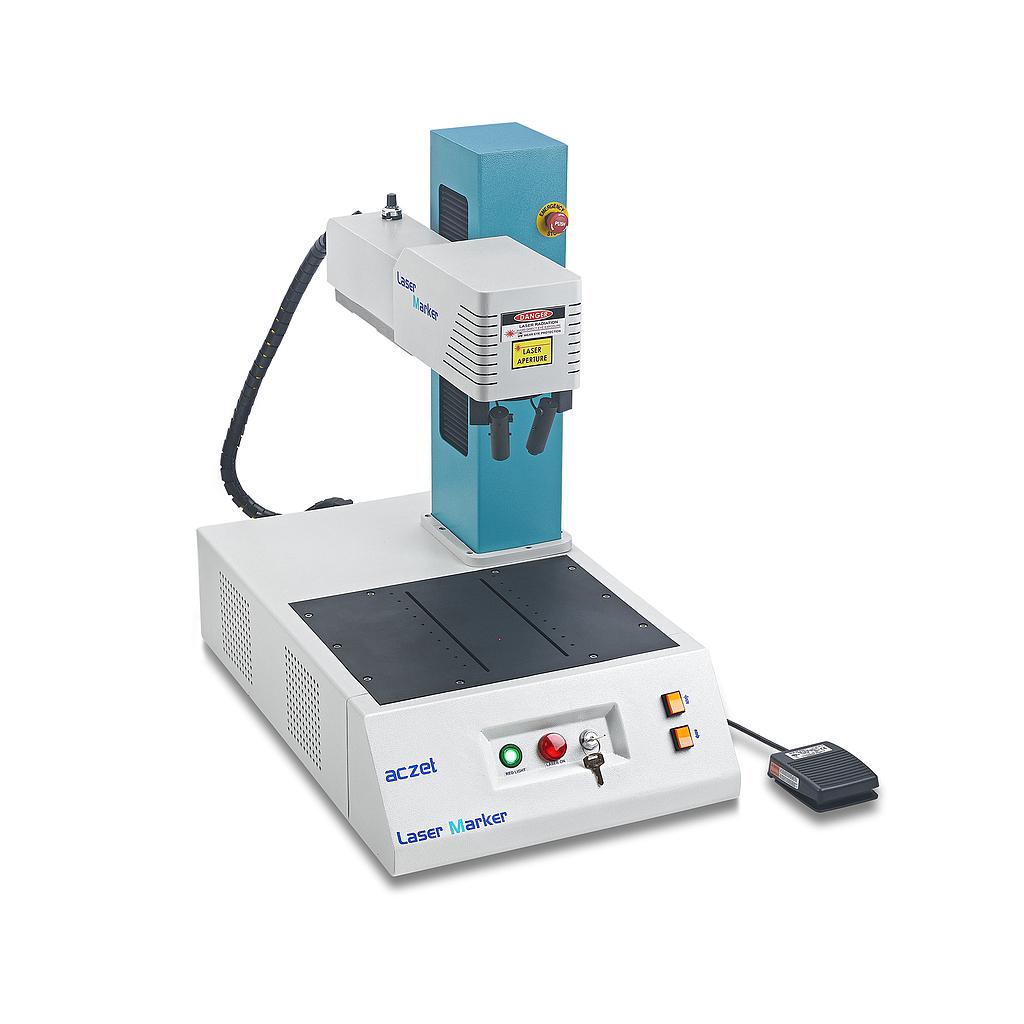

Laser Source: Pulsed Powerful Fiber Laser
Laser Power: 20 W
Pick Power: 50 kW
Laser wavelength: 1064 ± 1 nm
Beam Quality M2: < 1.2
Pulse Repetition Rate: 25 KHz
Marking Area (mm): 100 x 100
Working Life Of Laser: Greater than 20,000 hours
Marking Speed: < 7000 mm/sec
Laser Frequency: 20 - 100 kHz
Cooling System: Air Cooling
Axis: Auto Z Axis
Minimum Width: 0.03 mm
Minimum Character: 0.03 mm
Repeatability: 0.003 mm
Power Consumption (W): 800 W
Power Supply: 12V / 25/A DC V AC,60 Hz/1P/ 4A or 110V/ 50Hz/1P/8A
Dimension (LxWxH) mm: 680 x 460 x 640
Net Weight (Kg): 45 kg
Packing Dimension (LxWxH): 625 x 400 x 632
