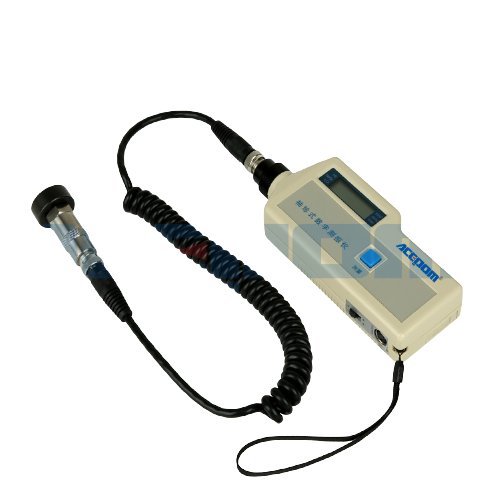

Acepom ACEPOM313 Split Vibration Meter (0.1-199.9m/s²; 0.1-199.9mm/s; +5%)

Acceleration Probe: Piezoelectric Shear Acceleration Probe

Measurement range:

- Acceleration: 0.1-199.9m/s²

- Speed: 0.1-199.9 mm/s

- Displacement: 0.001-1.999 mm

Measurement accuracy: +5%+2 words

Frequency range:

- Acceleration: 10Hz-1kHz (LO), 1kHz-15kHz (HI)

- Speed: 10 Hz to 1 kHz

- Displacement: 10Hz~1kHz

Display: 3-1/2 digital display, update speed 1 second, press MEAS key to measure, release the key to maintain

Signal Output: AC Output, Full Range 2V, Accessible headphone VP-37

Load impedance: above 10K ohm

Power supply: 1 9V battery operates continuously for about 25 hours

1 minute automatic power off

Ambient temperature and humidity: - 10-50 C, <90% RH

Dimension: 185(H)*68(H)*30(D) mm

Weight: 250 g
