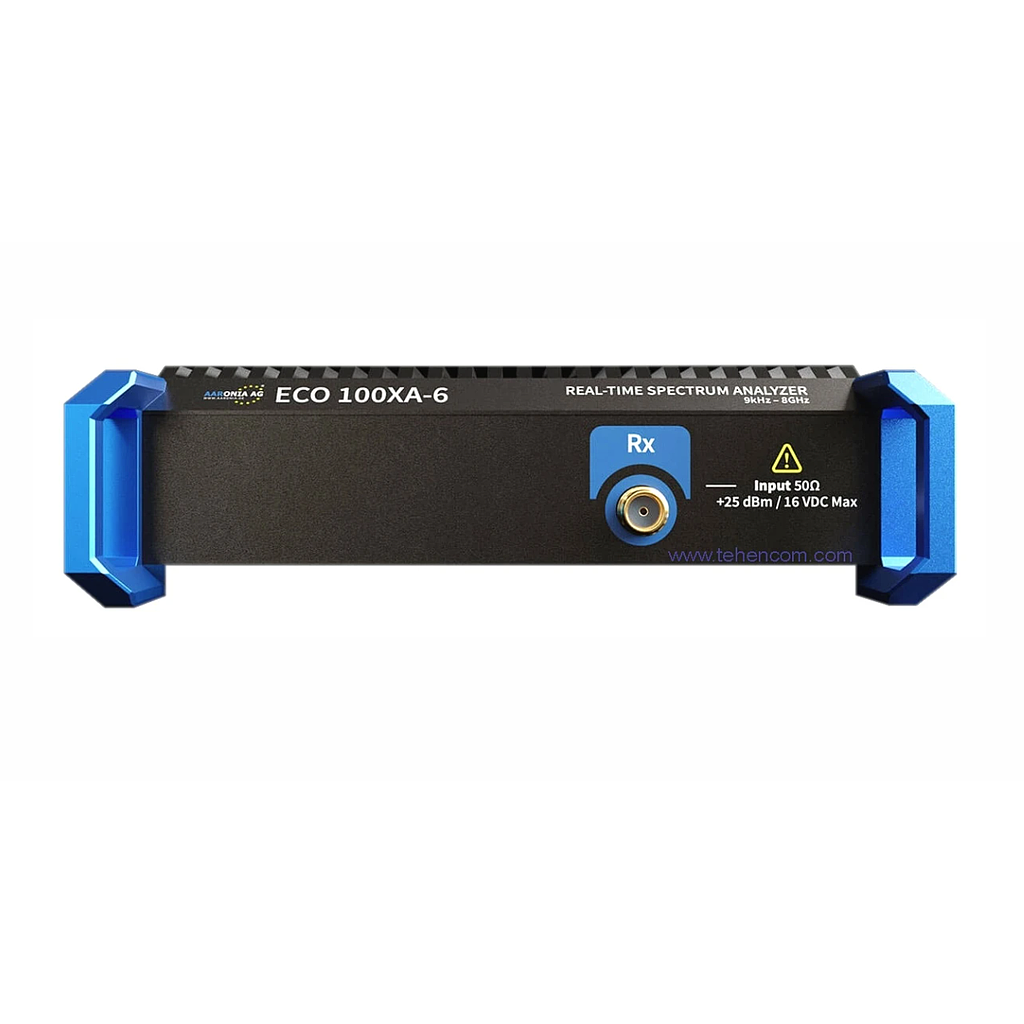

RTBW: 44 MHz
Speed: 500 GHz/s
I/Os: 1 Rx
Frequency range: 9kHz to 6 | 7.25 GHz
Real-time bandwidth Rx: up to 88 (2 x 44) MHz via 1x USB
Real-time bandwidth Tx: 44 MHz (device dependent)
Max. power Rx: +23 dBm
Max. power Tx: +10 dBm
DANL (internal pre-amp on): Typ. -170 dBm/Hz
Amplitude accuracy (typ.): Typ. +/- 0,5 dB (compensated by FIR filter)
USB streaming connection: 1x USB3
Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)
RBW (resolution bandwidth): 62 mHz to 200 MHz
Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)
Detector: Min, Max, AVG, Peak, QPeak
Attenuator range: 50 dB / 70 dB (0,5 dB steps)
Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)
Measurement modes: True IQ or Power/Frequency data
Trigger: Cursor, Measurement, Density
ADC: 2GSPS 16 Bit
DAC: 2GSPS 14 Bit
GPS: GPS/QZSS, GLONASS, BeiDou and Galileo (concurrent reception)
GPS synchronisation: +/- 10ns timestamping in each data packet
External Frequency Reference Input: typ. 10MHz, 3,5VRMS into 50 Ohm (SMB-connector)
DSP processing: 930 GMACs
SDRAM: 2 GB
RF connectors: SMA (Rx,Tx), SMB (Trigger, Refclock, GPS, PPM). All 50 Ohms.
Temperature range (operation): 0 °C to +50 °C (extended -40 to +75 °C)
Dimensions: 210 x 115 x 30 mm
Power: USB 3.2 Gen 1 Type-C PD 3.0
Power consumption: Typical 10 W
