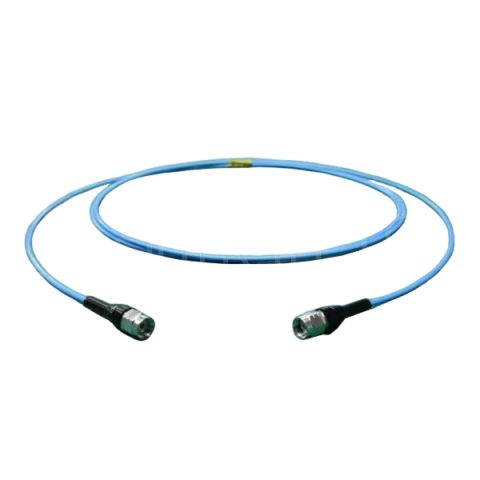

Cable Type: Flexible
Frequency, Min (GHz): 0
Frequency, Max (GHz): 67
I.L., Typ (dB): 10.87
I.L., Max (dB): 11.96
VSWR, Typ: 1.40:1
VSWR, Max: 1.50:1
Phase Stability (±deg): 15
Amplitude Stability (±dB): 0.5
Impedance, (Ohm): 50
Connector 1: :1.85mm (V)
Connector 1 Gender: Male
Connector 1 Body Material: Passivated Stainless Steel
Connector 2: 1.85mm (V)
Connector 2 Gender: Male
Connector 2 Body Material: Passivated Stainless Steel
Operating Temp. Low (°C): -40
Operating Temp. High (°C): 85
Storage Temp. Low (°C): -40
Storage Temp. High (°C): 85
Cable Length, (mm): 1500
Cable Length, (inch): 59.055
Cable Outer Diameter (mm): 2.4
Cable Outer Diameter (inch): 0.094
Minimum Bending Radius (mm): 24
Minimum Bending Radius (inch): 0.95
Armored: No
Weight, (kg): 0.13
Application: General Purpose Indoor & Outdoor, Fixed
